SKU: MSL-M06-MB

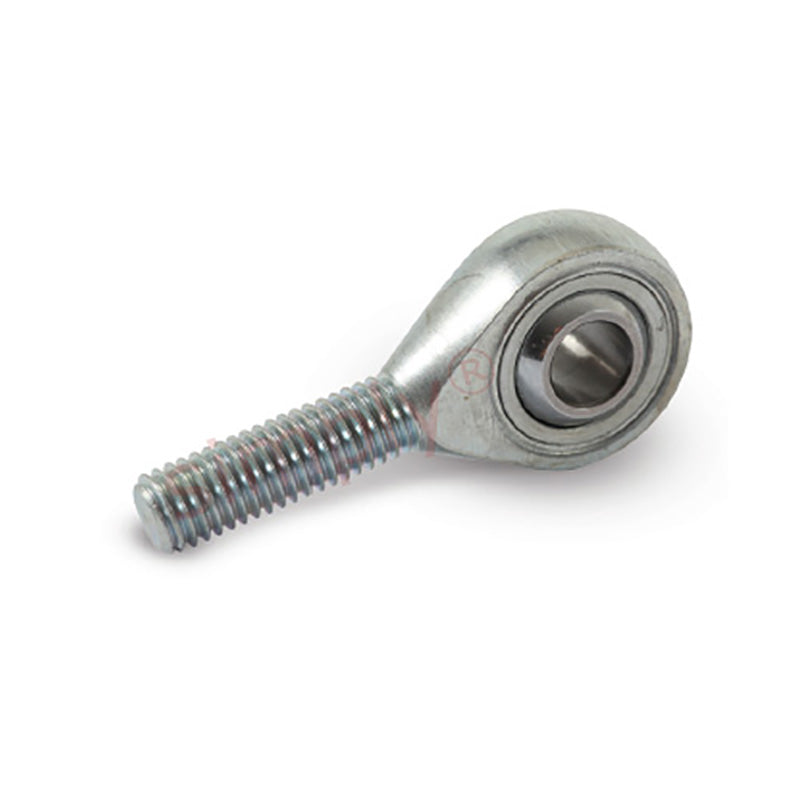

Branded MSL-M06 Left Hand Metric Steel / PTFE Lined Maintenance Free Plain Male Rod End M6x1 Thread - Allow 7-10 Days

Name: Branded MSL-M06 Left Hand Metric Steel / PTFE Lined Maintenance Free Plain Male Rod End M6x1 Thread - Allow 7-10 Days
Brand: Major Brand
SKU: MSL-M06-MB
Price: 870.53 INR
Availability: InStock

Rs. 870.53

Sale Sold out

Taxes included.

In stock

Price Break

10+ Rs. 774.77

19+ Rs. 731.25

29+ Rs. 722.54

39+ Rs. 713.83

49+ Rs. 705.13

74+ Rs. 696.42

99+ Rs. 652.90

199+ Rs. 644.19

249+ Rs. 635.49

499+ Rs. 626.78

999+ Rs. 609.37

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

MS Series PTFE Lined Maintenance Free Male Rod Ends: These steel on steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance

Brand / Quality:: Major Brand - High Quality
Thread Size:: M6x1
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 6mm
Material:: PTFE Lined

Technical

Bore size	6mm
Thread	M6x1
W	9mm
H	6.75mm
D	20mm
L1	36mm
L2	22mm
O	8.9mm
Static load	6000 N
