• Branded MSL-05 Left Hand Imperial Steel / PTFE Lined Maintenance Free Plain Male Rod End 5/16 UNF Thread - Allow 7-10 Days
1 1

SKU: MSL-05-MB

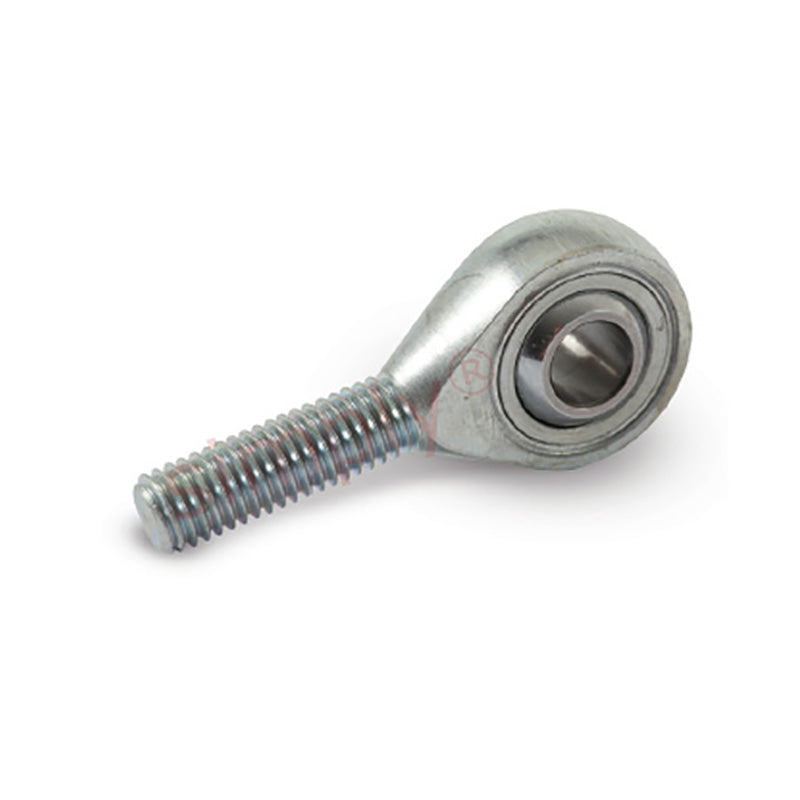

Branded MSL-05 Left Hand Imperial Steel / PTFE Lined Maintenance Free Plain Male Rod End 5/16 UNF Thread - Allow 7-10 Days

Branded MSL-05 Left Hand Imperial Steel / PTFE Lined Maintenance Free Plain Male Rod End 5/16 UNF Thread - Allow 7-10 Days
Rs. 1,495.26
Rs. 1,495.26
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,330.78
19+ Rs. 1,256.02
29+ Rs. 1,241.07
39+ Rs. 1,226.11
49+ Rs. 1,211.16
74+ Rs. 1,196.21
99+ Rs. 1,121.45
199+ Rs. 1,106.49
249+ Rs. 1,091.54
499+ Rs. 1,076.59
999+ Rs. 1,046.68
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

MS Series PTFE Lined Maintenance Free Male Rod Ends: These steel on steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance
Brand / Quality:
Major Brand - High Quality
Thread Size:
5/16 UNF
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
7.93mm = 0.312 (5/16) inch
Material:
PTFE Lined
Technical
Bore size 5/16 inch
Thread 5/16 UNF
W 0.437 inch
H 0.344 inch
D 1 inch
L1 1.875 inch
L2 1.25 inch
O 11.35 inch
Static load 11100 N
