SKU: MSFT1030K-RHP

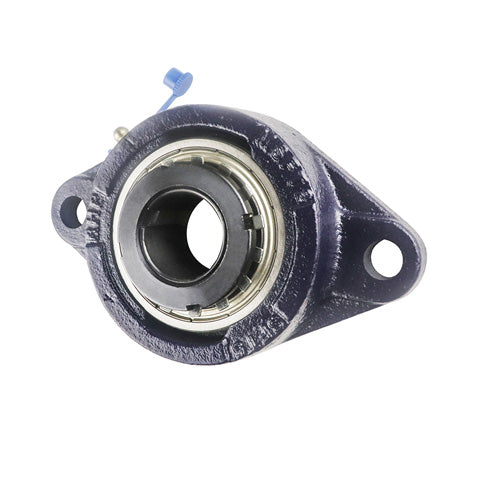

RHP MSFT1030K Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
In stock
Price Break
Couldn't load pickup availability
Description
|
RHP MSFT 1000K Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed taper bore heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with a tab washer. |
- Brand / Quality:
- RHP - High Quality
- Style:
- MSFT
- Bolt Hole Centres:
- 116.5mm
Technical
| L | 82.6mm |
|---|---|
| H | 141.3mm |
| J | 116.5mm |
| G | 10mm |
| A | 29.8mm |
| A4 | 12.7mm |
| d4 | 45mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
