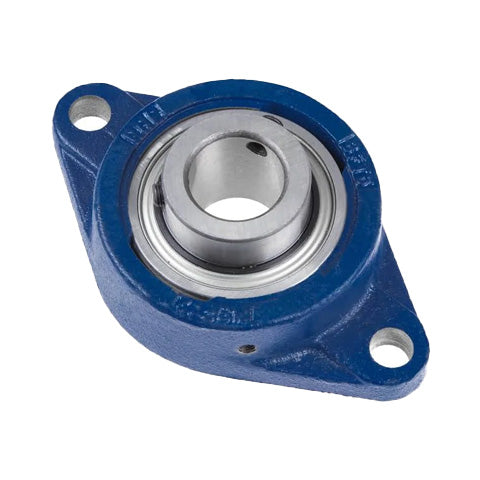

• RHP MSFT1-7/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-7/16 inch Bore Insert
1 1

SKU: MSFT1.7/16-RHP

RHP MSFT1-7/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-7/16 inch Bore Insert

RHP MSFT1-7/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-7/16 inch Bore Insert
Rs. 11,965.91
Rs. 11,965.91
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 10,649.66
19+ Rs. 10,051.36
29+ Rs. 9,931.71
39+ Rs. 9,812.05
49+ Rs. 9,692.39
74+ Rs. 9,572.73
99+ Rs. 8,974.43
199+ Rs. 8,854.77
249+ Rs. 8,735.11
499+ Rs. 8,615.46
999+ Rs. 8,376.14
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert, heavy duty

Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
MSFT
Bolt Hole Centres:
143.51mm = 5.65 inch
Technical
Bore 1-7/16 inch
L 4 inch
H 6.748 inch
J 5.65 inch
G 0.5 inch
A 1.374 inch
A1 2.133 inch
A4 0.5 inch
B 1.938 inch
s 0.752
d1 2.075 inch
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.9 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
