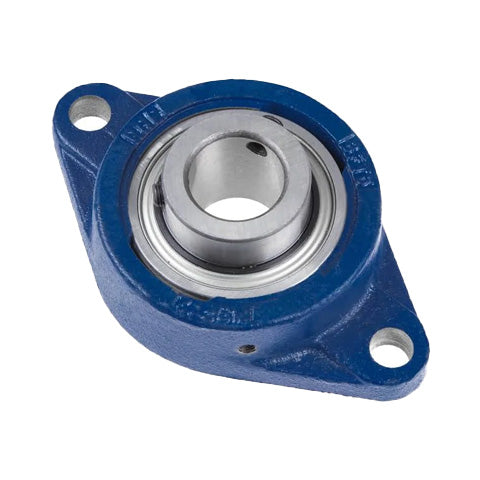

• RHP MSFT1-3/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-3/16 inch Bore Insert
1 1

SKU: MSFT1.3/16-RHP

RHP MSFT1-3/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-3/16 inch Bore Insert

RHP MSFT1-3/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-3/16 inch Bore Insert
Rs. 11,744.44
Rs. 11,744.44
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 10,452.55
19+ Rs. 9,865.33
29+ Rs. 9,747.89
39+ Rs. 9,630.44
49+ Rs. 9,513.00
74+ Rs. 9,395.55
99+ Rs. 8,808.33
199+ Rs. 8,690.89
249+ Rs. 8,573.44
499+ Rs. 8,456.00
999+ Rs. 8,221.11
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert, heavy duty

Brand / Quality:
RHP - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
MSFT
Bolt Hole Centres:
129.997mm = 5.118 inch

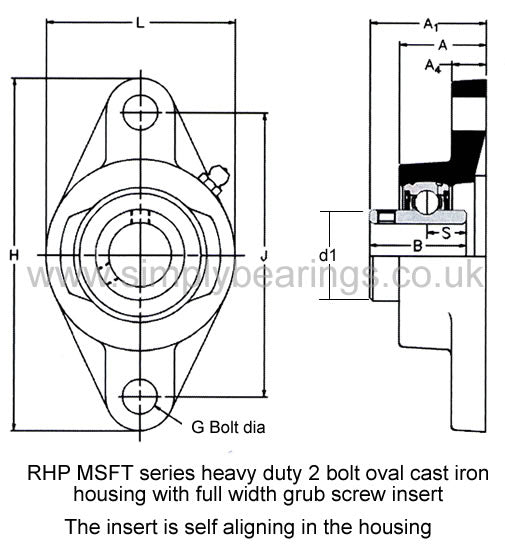

Technical
Bore 1-3/16 inch
L 3.76 inch
H 6.122 inch
J 5.118 inch
G 0.5 inch
A 1.236 inch
A1 1.827 inch
A4 0.5 inch
B 1.688 inch
s 0.69
d1 1.838 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-3/16G+insonly">1035-1-3/16G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
