• RHP MSF35 Metric Four Bolt Square Cast Iron Flange Housing and 35mm Bore Grub Screw Insert
1 1

SKU: MSF35-RHP

RHP MSF35 Metric Four Bolt Square Cast Iron Flange Housing and 35mm Bore Grub Screw Insert

RHP MSF35 Metric Four Bolt Square Cast Iron Flange Housing and 35mm Bore Grub Screw Insert
Rs. 9,191.75
Rs. 9,191.75
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,180.66
19+ Rs. 7,721.07
29+ Rs. 7,629.15
39+ Rs. 7,537.24
49+ Rs. 7,445.32
74+ Rs. 7,353.40
99+ Rs. 6,893.81
199+ Rs. 6,801.90
249+ Rs. 6,709.98
499+ Rs. 6,618.06
999+ Rs. 6,434.23
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSF Series Heavy Duty 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert, heavy duty

Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
MSF
Bolt Hole Centres:
101.5mm

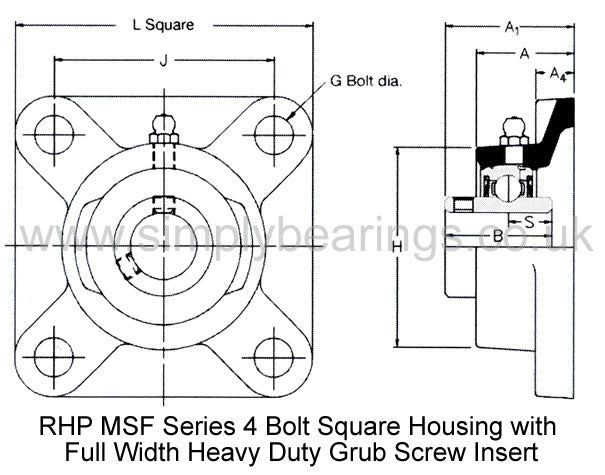

Technical
Bore 35mm
L 130.2mm
H 101.6mm
J 101.5mm
G 12mm
A 34.9mm
A1 54.18mm
A4 12.7mm
B 49.23mm
s 19.1mm
d1 52.7mm
Dynamic load cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1040-35G+insonly">1040-35G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
