• RHP MSF1055-2K Imperial Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Taper Sleeve Insert
1 1

SKU: MSF1055-2K-RHP

RHP MSF1055-2K Imperial Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Taper Sleeve Insert

RHP MSF1055-2K Imperial Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Taper Sleeve Insert
Rs. 24,746.03
Rs. 24,746.03
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 22,023.97
19+ Rs. 20,786.67
29+ Rs. 20,539.20
39+ Rs. 20,291.74
49+ Rs. 20,044.28
74+ Rs. 19,796.82
99+ Rs. 18,559.52
199+ Rs. 18,312.06
249+ Rs. 18,064.60
499+ Rs. 17,817.14
999+ Rs. 17,322.22
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSF Series Heavy Duty 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, taper sleeve fixing, full width insert, heavy duty

Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
MSF
Bolt Hole Centres:
129.997mm = 5.118 inch

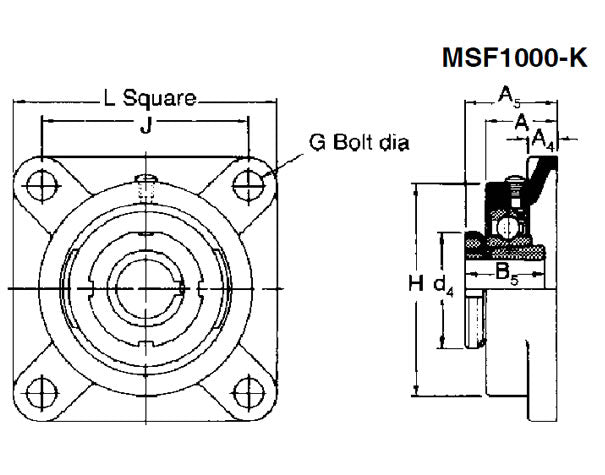

Technical
Bore 2 inch
L 6.374 inch
H 5000 inch
J 5.118 inch
G 0.625 inch
A 1.72 inch
A1 - inch
A4 0.689 inch
B - inch
s - inch
d1 - inch
Dynamic load cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
