• RHP MSC70 Cast Iron Cartridge Unit with 70mm Bore Insert 158.78mm Outside Diameter
1 1

SKU: MSC70-RHP

RHP MSC70 Cast Iron Cartridge Unit with 70mm Bore Insert 158.78mm Outside Diameter

RHP MSC70 Cast Iron Cartridge Unit with 70mm Bore Insert 158.78mm Outside Diameter
Rs. 25,930.52 ex VAT
Rs. 25,930.52 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 23,078.16
19+ Rs. 21,781.64
29+ Rs. 21,522.33
39+ Rs. 21,263.03
49+ Rs. 21,003.72
74+ Rs. 20,744.42
99+ Rs. 19,447.89
199+ Rs. 19,188.58
249+ Rs. 18,929.28
499+ Rs. 18,669.97
999+ Rs. 18,151.36
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

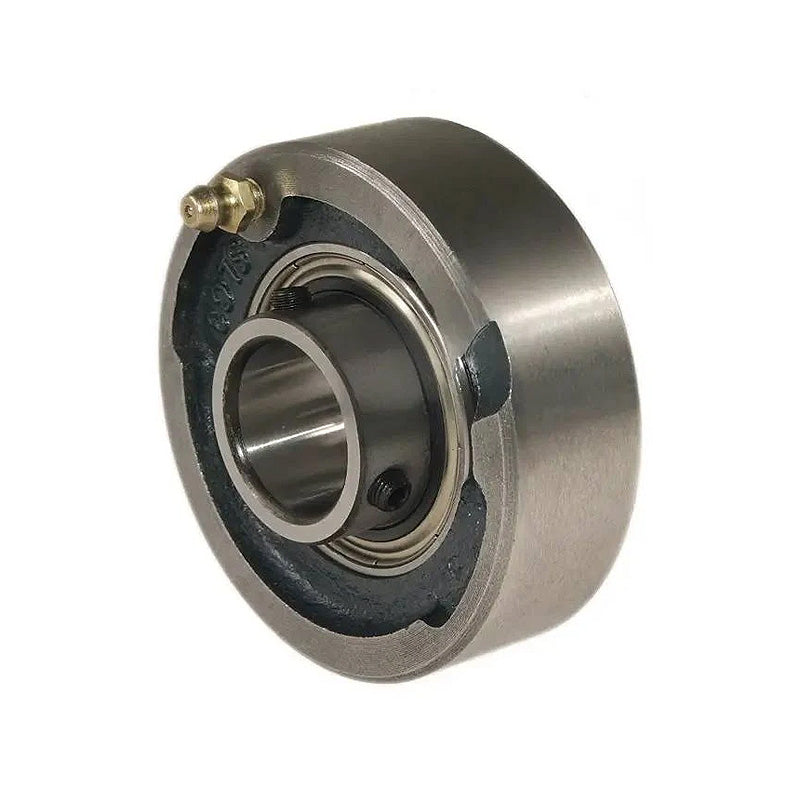

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
70mm
Outside Diameter:
158.78mm
Style:
MSC
Technical
Bore 70mm
L 158.775mm
A 50.8mm
A1 69.8mm
B 74.63mm
s 30.23mm
d1 87
Dynamic load Cr 61000 N
Static load Cor 45000 N
Rex max speed 2450 rpm
Weight 5.3 kg
Insert <a href="advanced_search_result.php?keywords=1070-70G+insonly">1070-70G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
