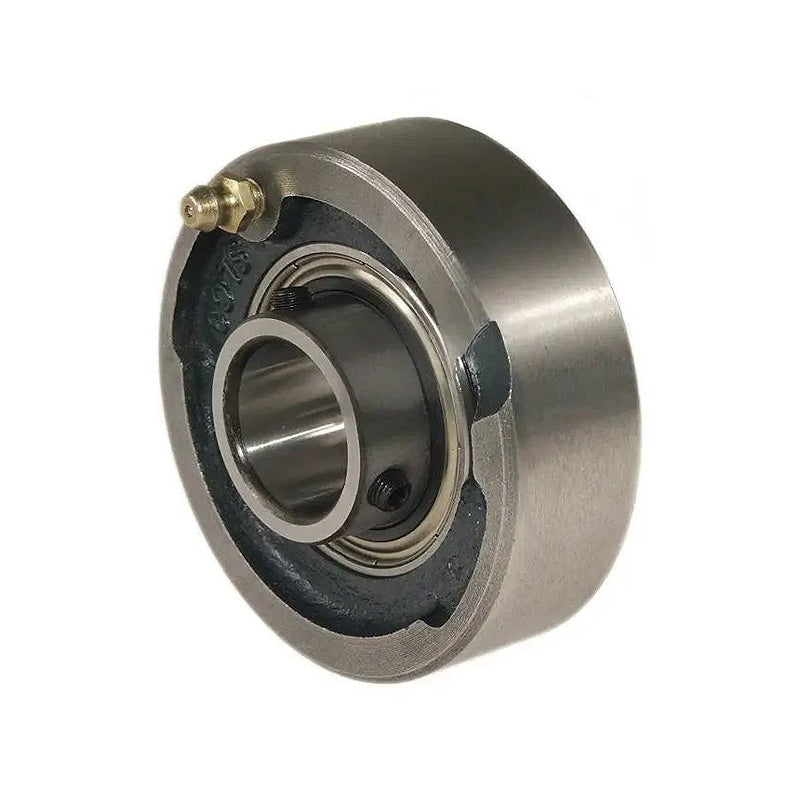

• RHP MSC55 Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
1 1

SKU: MSC55-RHP

RHP MSC55 Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter

RHP MSC55 Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
Rs. 15,432.18 ex VAT
Rs. 15,432.18 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 13,734.64
19+ Rs. 12,963.03
29+ Rs. 12,808.71
39+ Rs. 12,654.39
49+ Rs. 12,500.07
74+ Rs. 12,345.74
99+ Rs. 11,574.14
199+ Rs. 11,419.81
249+ Rs. 11,265.49
499+ Rs. 11,111.17
999+ Rs. 10,802.53
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
55mm
Outside Diameter:
125.44mm
Style:
MSC
Technical
Bore 55mm
L 125.437mm
A 40.48mm
A1 53.57mm
B 55.55mm
s 22.28mm
d1 68.81
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rex max speed 3100 rpm
Weight 2.9 kg
Insert <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
