SKU: MSC4-RHP

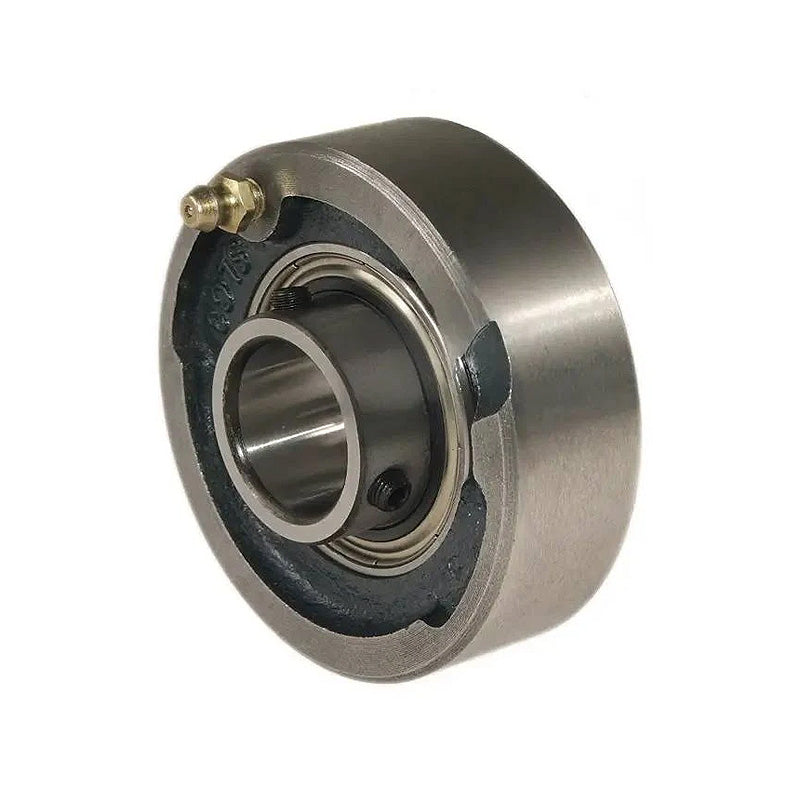

RHP MSC4 Cast Iron Cartridge Unit with 4 inch Bore Insert 241.33mm Outside Diameter
RHP MSC4 Cast Iron Cartridge Unit with 4 inch Bore Insert 241.33mm Outside Diameter
Regular price
Rs. 116,136.48
ex VAT
Regular price
Sale price
Rs. 116,136.48
ex VAT
In stock
Price Break
10+
Rs. 103,361.47
19+
Rs. 97,554.64
29+
Rs. 96,393.28
39+
Rs. 95,231.91
49+
Rs. 94,070.55
74+
Rs. 92,909.18
99+
Rs. 87,102.36
199+
Rs. 85,941.00
249+
Rs. 84,779.63
499+
Rs. 83,618.27
999+
Rs. 81,295.54
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 241.33mm
- Style:
- MSC
Technical
Technical
| Bore | 4 inch |
|---|---|
| L | 9.501 inch |
| A | 3 inch |
| A1 | 4.188 inch |
| B | 4.625 inch |
| s | 1.94 inch |
| d1 | 5.135 |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rex max speed | 1600 rpm |
| Weight | 20.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-4G+insonly">3095-4G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
