SKU: MSC3-RHP

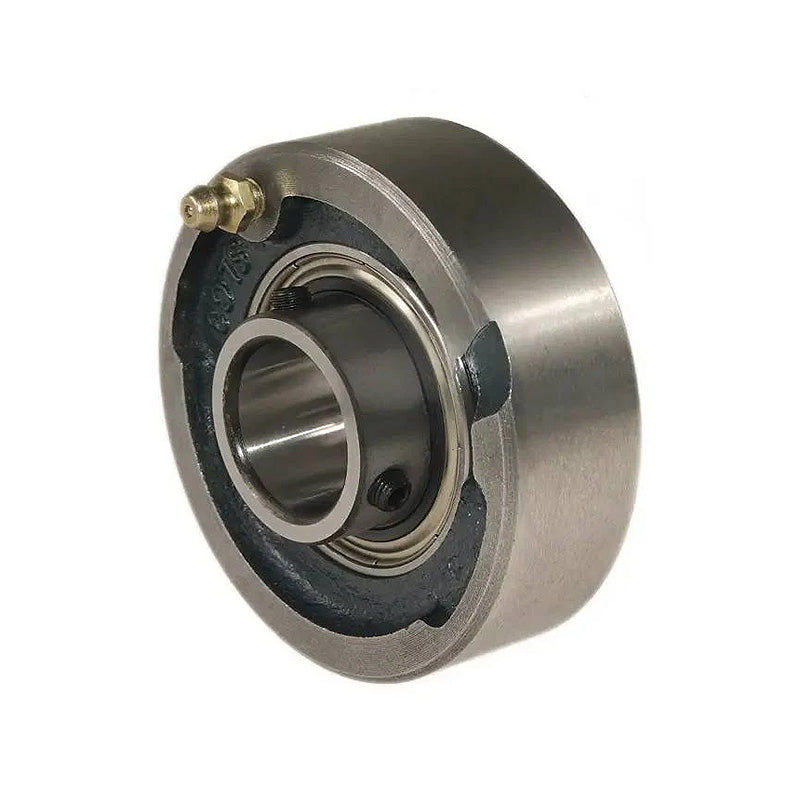

RHP MSC3 Cast Iron Cartridge Unit with 3 inch Bore Insert 177.83mm Outside Diameter
RHP MSC3 Cast Iron Cartridge Unit with 3 inch Bore Insert 177.83mm Outside Diameter
Regular price
Rs. 38,343.64
ex VAT
Regular price
Sale price
Rs. 38,343.64
ex VAT
In stock
Price Break
10+
Rs. 34,125.84
19+
Rs. 32,208.66
29+
Rs. 31,825.22
39+
Rs. 31,441.78
49+
Rs. 31,058.35
74+
Rs. 30,674.91
99+
Rs. 28,757.73
199+
Rs. 28,374.29
249+
Rs. 27,990.86
499+
Rs. 27,607.42
999+
Rs. 26,840.55
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 177.83mm
- Style:
- MSC
Technical
Technical
| Bore | 3 inch |
|---|---|
| L | 7.001 inch |
| A | 2.187 inch |
| A1 | 3.031 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rex max speed | 2150 rpm |
| Weight | 7.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
