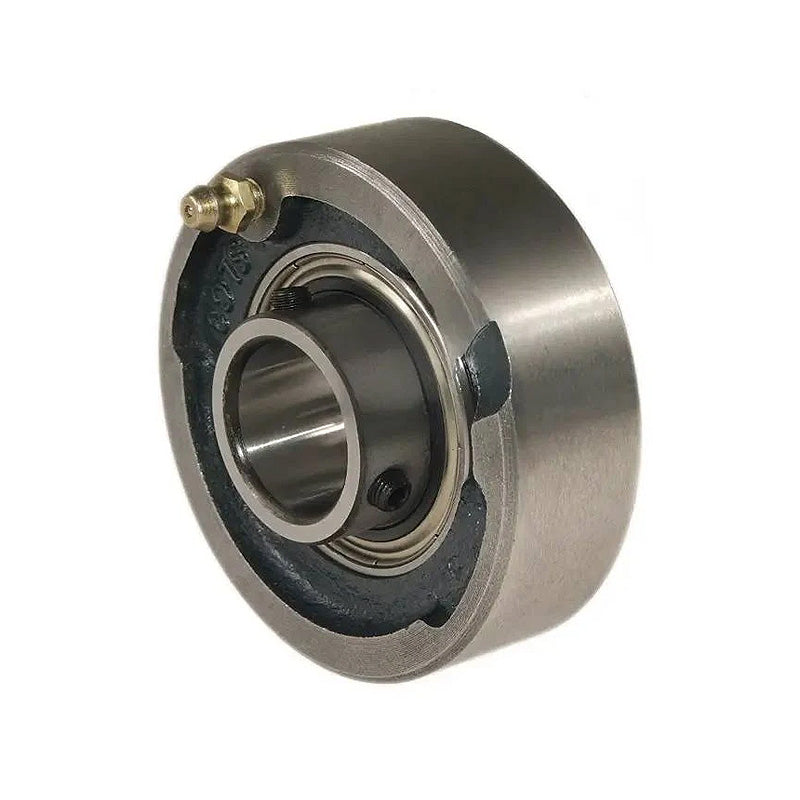

• RHP MSC2 Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
1 1

SKU: MSC2-RHP

RHP MSC2 Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter

RHP MSC2 Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
Rs. 16,370.57 ex VAT
Rs. 16,370.57 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 14,569.81
19+ Rs. 13,751.28
29+ Rs. 13,587.57
39+ Rs. 13,423.87
49+ Rs. 13,260.16
74+ Rs. 13,096.46
99+ Rs. 12,277.93
199+ Rs. 12,114.22
249+ Rs. 11,950.52
499+ Rs. 11,786.81
999+ Rs. 11,459.40
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
125.44mm
Style:
MSC
Technical
Bore 2 inch
L 4.9385 inch
A 1.594 inch
A1 2.109 inch
B 2.187 inch
s 0.877 inch
d1 2.709
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rex max speed 3100 rpm
Weight 2.9 kg
Insert <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
