• RHP MSC2-7/16 Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 158.78mm Outside Diameter
1 1

SKU: MSC2.7/16-RHP

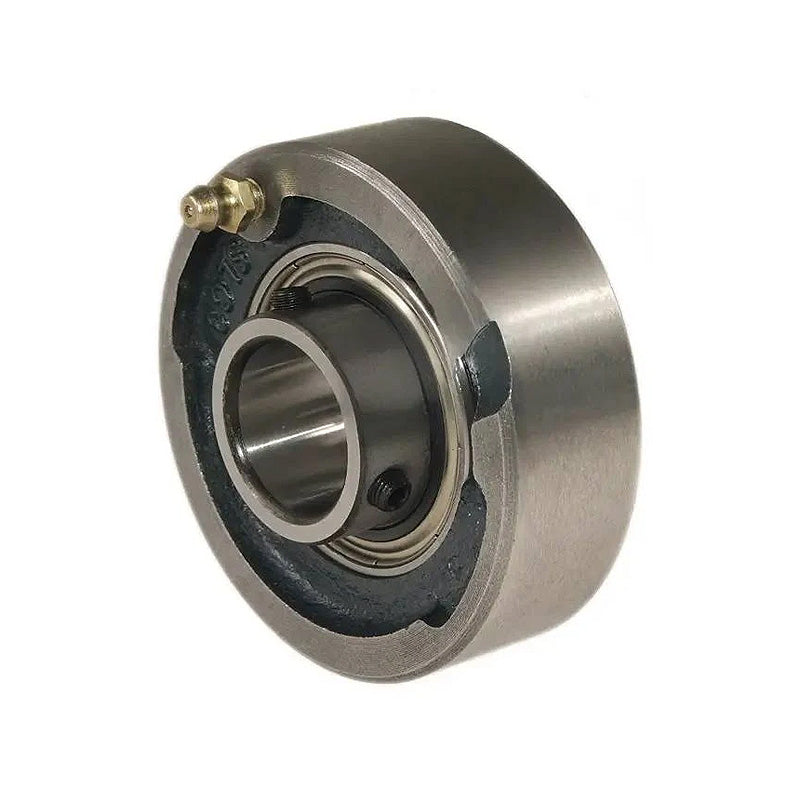

RHP MSC2-7/16 Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 158.78mm Outside Diameter

RHP MSC2-7/16 Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 158.78mm Outside Diameter
Rs. 27,508.44 ex VAT
Rs. 27,508.44 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 24,482.51
19+ Rs. 23,107.09
29+ Rs. 22,832.01
39+ Rs. 22,556.92
49+ Rs. 22,281.84
74+ Rs. 22,006.75
99+ Rs. 20,631.33
199+ Rs. 20,356.25
249+ Rs. 20,081.16
499+ Rs. 19,806.08
999+ Rs. 19,255.91
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Outside Diameter:
158.78mm
Style:
MSC
Technical
Bore 2-7/16 inch
L 6.251 inch
A 2 inch
A1 2.748 inch
B 2.938 inch
s 1.19 inch
d1 3.425
Dynamic load Cr 61000 N
Static load Cor 45000 N
Rex max speed 2450 rpm
Weight 5.3 kg
Insert <a href="advanced_search_result.php?keywords=1070-2-7/16G+insonly">1070-2-7/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
