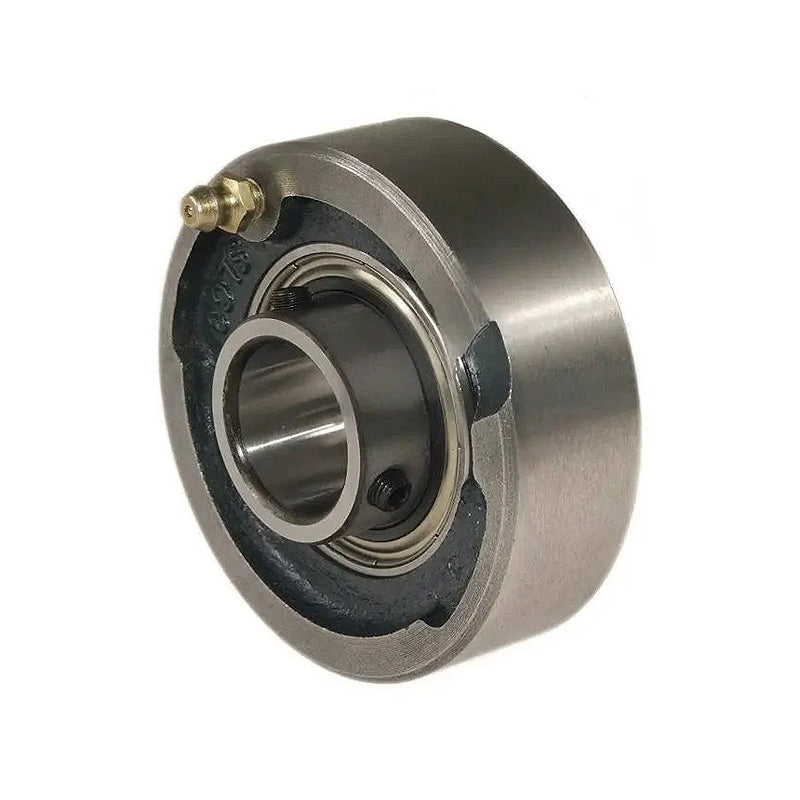

• RHP MSC2-15/16 Cast Iron Cartridge Unit with 2-15/16 inch Bore Insert 177.83mm Outside Diameter - Allow 2-3 Days
1 1

SKU: MSC2.15/16-RHP

RHP MSC2-15/16 Cast Iron Cartridge Unit with 2-15/16 inch Bore Insert 177.83mm Outside Diameter - Allow 2-3 Days

RHP MSC2-15/16 Cast Iron Cartridge Unit with 2-15/16 inch Bore Insert 177.83mm Outside Diameter - Allow 2-3 Days
Rs. 56,752.00
Rs. 56,752.00
Sale Sold out
Taxes included.

In stock

Price Break
5+ Rs. 56,184.48
10+ Rs. 53,914.40
20+ Rs. 52,779.36
50+ Rs. 51,076.80
100+ Rs. 49,941.76
500+ Rs. 47,104.16
1000+ Rs. 39,726.40
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Outside Diameter:
177.83mm
Style:
MSC
Technical
Bore 2-15/16 inch
L 7.001 inch
A 2.187 inch
A1 3.031 inch
B 3.25 inch
s 1.314 inch
d1 3.878
Dynamic load Cr 71500 N
Static load Cor 54500 N
Rex max speed 2150 rpm
Weight 7.9 kg
Insert <a href="advanced_search_result.php?keywords=1080-2-15/16G+insonly">1080-2-15/16G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
