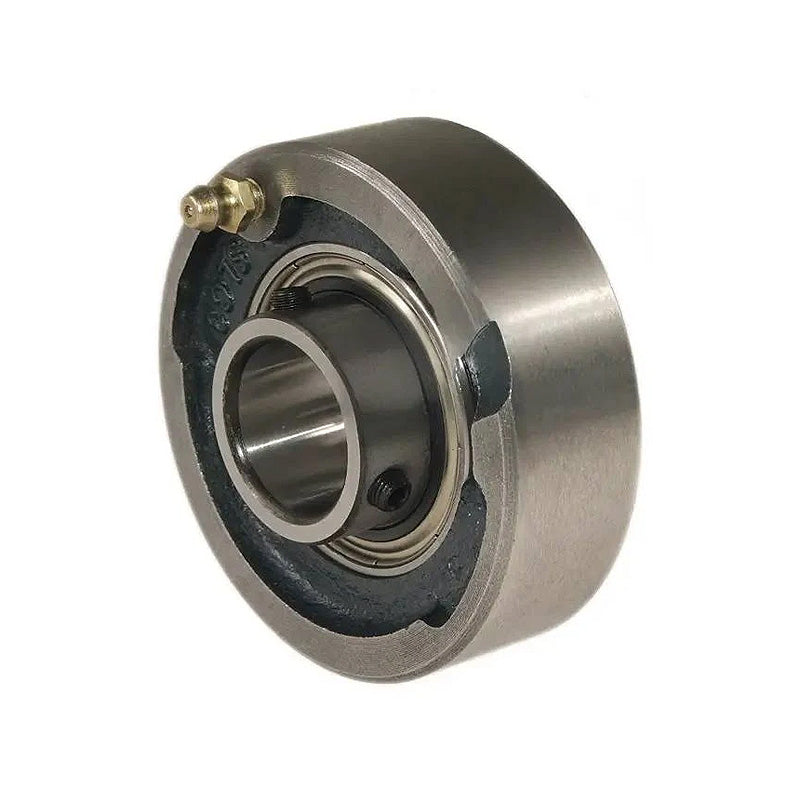

RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter
RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter
Regular price
Rs. 6,385.12
ex VAT
Regular price
Sale price
Rs. 6,385.12
ex VAT
In stock
Price Break
10+
Rs. 5,682.76
19+
Rs. 5,363.50
29+
Rs. 5,299.65
39+
Rs. 5,235.80
49+
Rs. 5,171.95
74+
Rs. 5,108.10
99+
Rs. 4,788.84
199+
Rs. 4,724.99
249+
Rs. 4,661.14
499+
Rs. 4,597.29
999+
Rs. 4,469.58
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 88.93mm
- Style:
- MSC
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.501 inch |
| A | 1.094 inch |
| A1 | 1.422 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rex max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
