SKU: MSC1.1/4-RHP

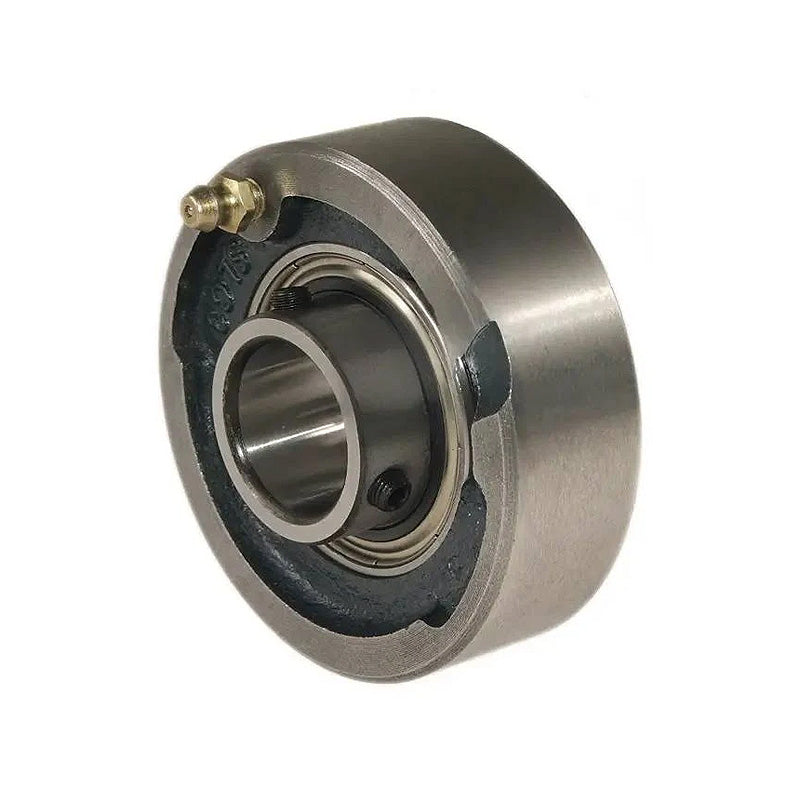

RHP MSC1-1/4 Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 98.45mm Outside Diameter
RHP MSC1-1/4 Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 98.45mm Outside Diameter
Regular price
Rs. 9,329.47
ex VAT
Regular price
Sale price
Rs. 9,329.47
ex VAT
In stock
Price Break
10+
Rs. 8,303.23
19+
Rs. 7,836.75
29+
Rs. 7,743.46
39+
Rs. 7,650.17
49+
Rs. 7,556.87
74+
Rs. 7,463.58
99+
Rs. 6,997.10
199+
Rs. 6,903.81
249+
Rs. 6,810.51
499+
Rs. 6,717.22
999+
Rs. 6,530.63
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 98.45mm
- Style:
- MSC
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 3.876 inch |
| A | 1.219 inch |
| A1 | 1.609 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rex max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
