SKU: MPL-M16C-MB

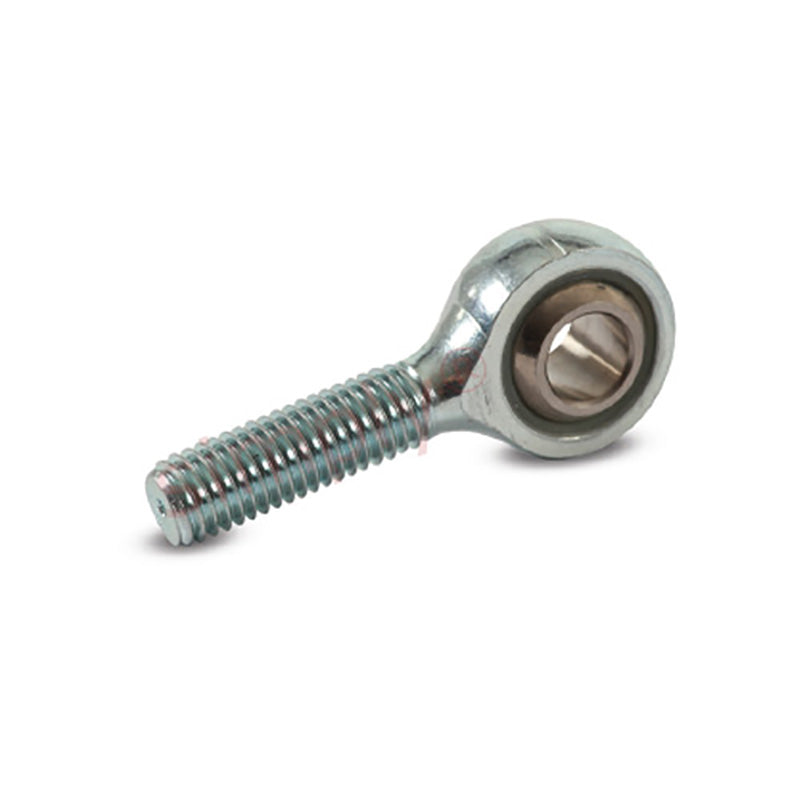

Branded MPL-M16C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M16x1.5 Thread - Allow 7-10 Days
Branded MPL-M16C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M16x1.5 Thread - Allow 7-10 Days
Regular price
Rs. 2,468.26
ex VAT
Regular price
Sale price
Rs. 2,468.26
ex VAT
In stock
Price Break
10+
Rs. 2,196.75
19+
Rs. 2,073.34
29+
Rs. 2,048.66
39+
Rs. 2,023.97
49+
Rs. 1,999.29
74+
Rs. 1,974.61
99+
Rs. 1,851.20
199+
Rs. 1,826.51
249+
Rs. 1,801.83
499+
Rs. 1,777.15
999+
Rs. 1,727.78
Couldn't load pickup availability
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 16mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 16mm |
|---|---|
| Thread | M16x1.5 |
| W | 21mm |
| H | 15mm |
| D | 38mm |
| L1 | 66mm |
| L2 | 40mm |
| O | 19.3mm |
| Static load | 37130 N |
