• Dunlop MPL-M05S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M5x0.8 Thread
1 1

SKU: MPL-M05S-DUN

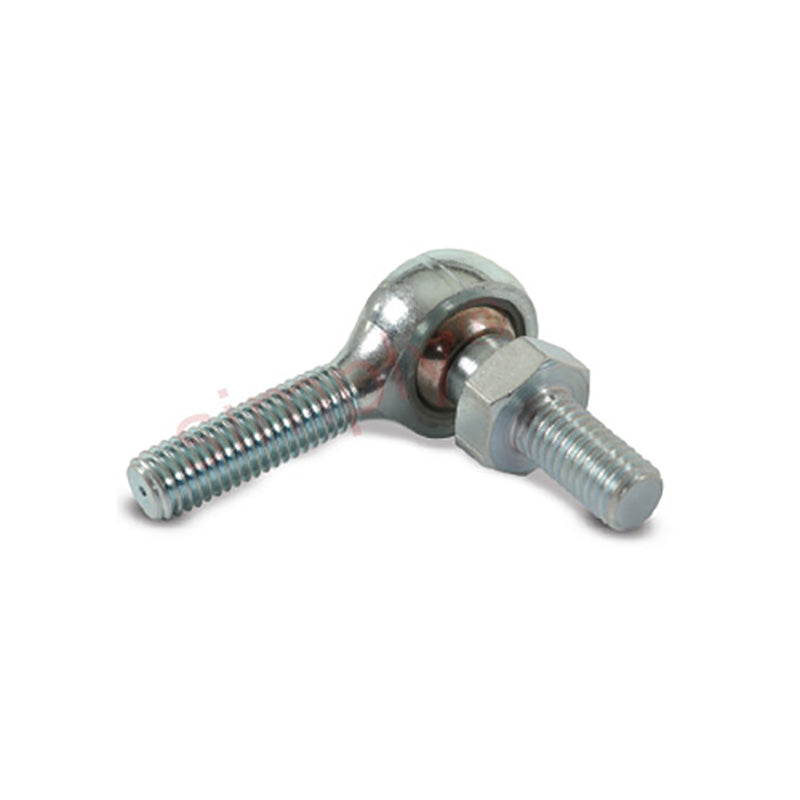

Dunlop MPL-M05S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M5x0.8 Thread

Dunlop MPL-M05S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M5x0.8 Thread
Rs. 1,380.04
Rs. 1,380.04
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,228.24
19+ Rs. 1,159.23
29+ Rs. 1,145.43
39+ Rs. 1,131.63
49+ Rs. 1,117.83
74+ Rs. 1,104.03
99+ Rs. 1,035.03
199+ Rs. 1,021.23
249+ Rs. 1,007.43
499+ Rs. 993.63
999+ Rs. 966.03
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.
Brand / Quality:
Dunlop - High Quality
Thread Size:
M5x0.8
Thread M / F:
Male
Thread Direction:
Left Hand
Material:
Nylon Lined
Technical
Stud size M5
Thread M5x0.8
A 10mm
B 10mm
C 8mm
K 9mm
Static load 1200 N
