SKU: MPL-12-MB

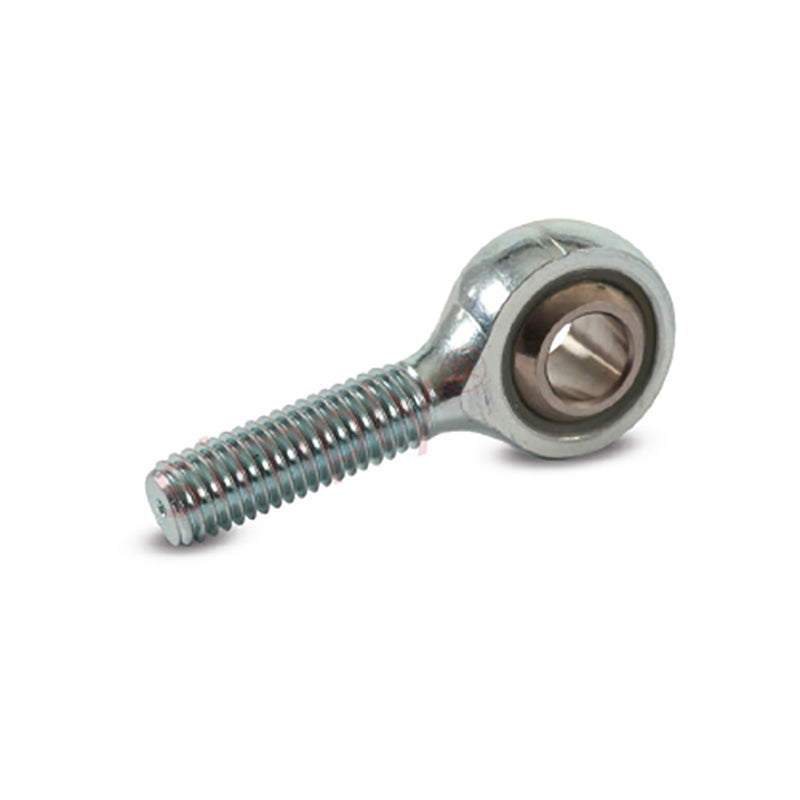

Branded MPL-12 Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/4 UNF Thread - Allow 7-10 Days
Branded MPL-12 Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/4 UNF Thread - Allow 7-10 Days
Regular price
Rs. 3,685.66
Regular price
Sale price
Rs. 3,685.66
Taxes included.
In stock
Price Break
10+
Rs. 3,280.24
19+
Rs. 3,095.95
29+
Rs. 3,059.10
39+
Rs. 3,022.24
49+
Rs. 2,985.38
74+
Rs. 2,948.53
99+
Rs. 2,764.25
199+
Rs. 2,727.39
249+
Rs. 2,690.53
499+
Rs. 2,653.68
999+
Rs. 2,579.96
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 3/4 UNF
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 3/4 inch |
|---|---|
| Thread | 3/4 UNF |
| W | 0.875 inch |
| H | 0.685 inch |
| D | 1.875 inch |
| L1 | 2.875 inch |
| L2 | 1.75 inch |
| O | 0.978 inch |
| Static load | 52400 N |
