SKU: MP3.1/4-RHP

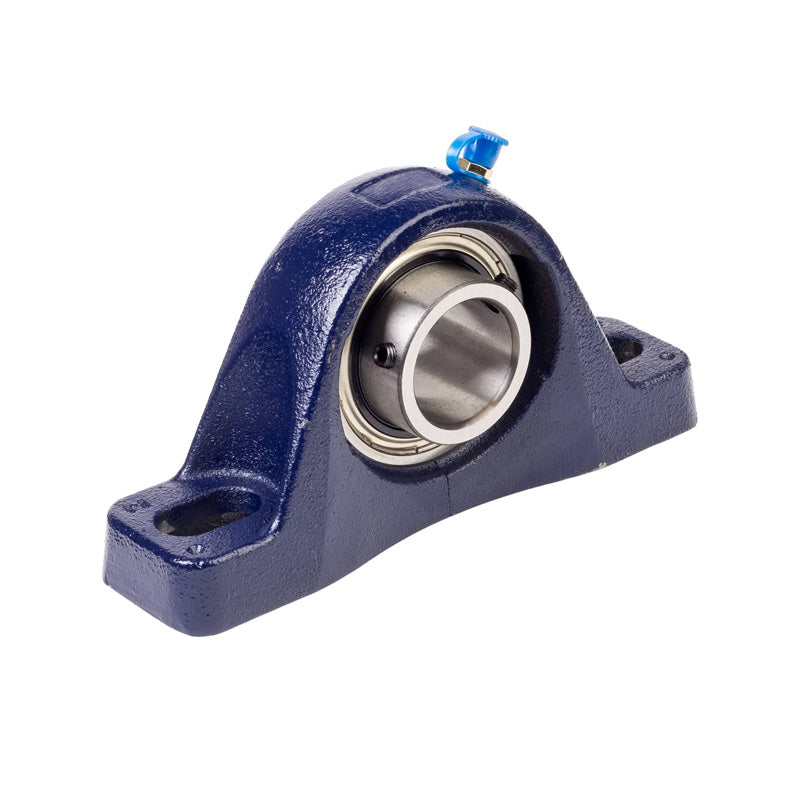

RHP MP3-1/4 Two Bolt Cast Iron Pillow Block and 3-1/4 Bore Grub Screw Insert
RHP MP3-1/4 Two Bolt Cast Iron Pillow Block and 3-1/4 Bore Grub Screw Insert
Regular price
Rs. 40,948.60
ex VAT
Regular price
Sale price
Rs. 40,948.60
ex VAT
In stock
Price Break
10+
Rs. 36,444.25
19+
Rs. 34,396.82
29+
Rs. 33,987.34
39+
Rs. 33,577.85
49+
Rs. 33,168.37
74+
Rs. 32,758.88
99+
Rs. 30,711.45
199+
Rs. 30,301.96
249+
Rs. 29,892.48
499+
Rs. 29,482.99
999+
Rs. 28,664.02
Couldn't load pickup availability
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- MP
- Bolt Hole Centres:
- 10.236-12.5 inch
Technical
Technical
| Bore | 3-1/4 inch |
|---|---|
| L | 15 inch |
| H | 4 inch |
| H1 | 1.252 inch |
| H2 | 8 inch |
| J max | 12.5 inch |
| J min | 10.236 inch |
| G | 1 inch |
| A | 4 inch |
| A1 | 2.689 inch |
| B | 3.375 inch |
| s | 1.346 inch |
| d1 | 4.174 inch |
| Dynamic load Cr | 83000 N |
| Static load Cor | 64000 N |
| Rec max speed | 2000 rpm |
| Weight | 18.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-3-1/4G+insonly">1085-3-1/4G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
