SKU: MP2.7/16-RHP

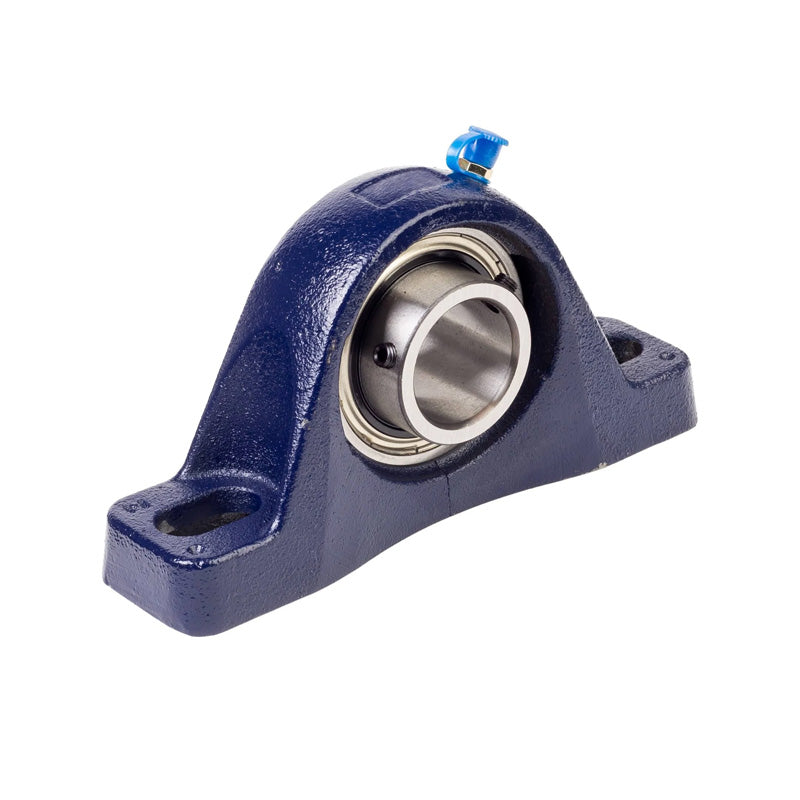

RHP MP2-7/16 Two Bolt Cast Iron Pillow Block and 2-7/16 Bore Grub Screw Insert
RHP MP2-7/16 Two Bolt Cast Iron Pillow Block and 2-7/16 Bore Grub Screw Insert
Regular price
Rs. 20,873.84
ex VAT
Regular price
Sale price
Rs. 20,873.84
ex VAT
In stock
Price Break
10+
Rs. 18,577.72
19+
Rs. 17,534.03
29+
Rs. 17,325.29
39+
Rs. 17,116.55
49+
Rs. 16,907.81
74+
Rs. 16,699.07
99+
Rs. 15,655.38
199+
Rs. 15,446.64
249+
Rs. 15,237.90
499+
Rs. 15,029.16
999+
Rs. 14,611.69
Couldn't load pickup availability
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 7.48-8.811 inch
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 11.252 inch |
| H | 3 inch |
| H1 | 1.063 inch |
| H2 | 6.252 inch |
| J max | 8.811 inch |
| J min | 7.48 inch |
| G | 0.75 inch |
| A | 3.252 inch |
| A1 | 2.374 inch |
| B | 2.938 inch |
| s | 1.19 inch |
| d1 | 3.425 inch |
| Dynamic load Cr | 61000 N |
| Static load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 9.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-7/16G+insonly">1070-2-7/16G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
