SKU: MP2.3/4-RHP

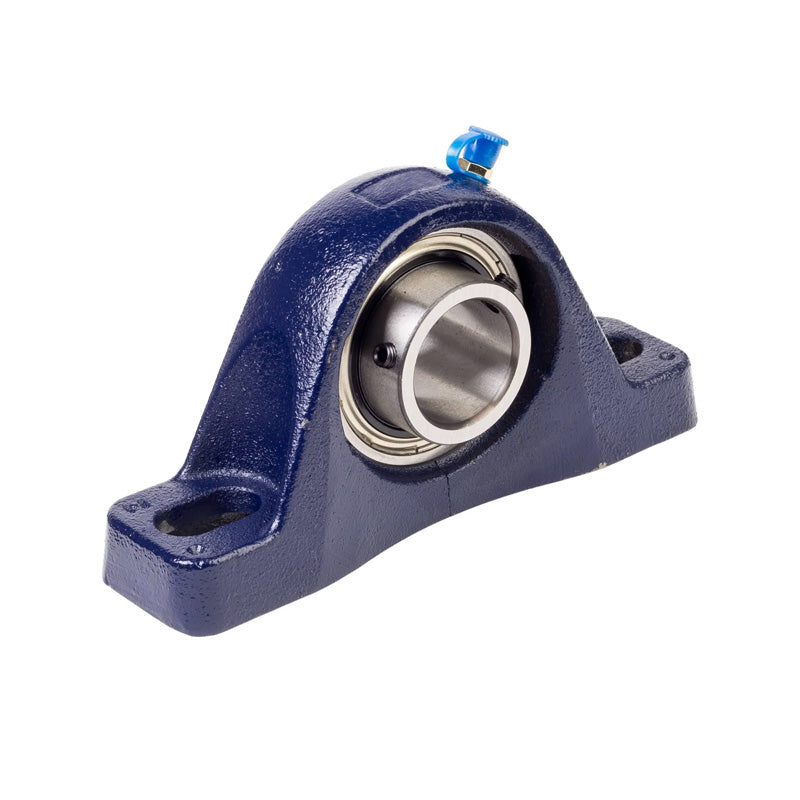

RHP MP2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Insert
RHP MP2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Insert
Regular price
Rs. 29,719.55
ex VAT
Regular price
Sale price
Rs. 29,719.55
ex VAT
In stock
Price Break
10+
Rs. 26,450.40
19+
Rs. 24,964.42
29+
Rs. 24,667.23
39+
Rs. 24,370.03
49+
Rs. 24,072.84
74+
Rs. 23,775.64
99+
Rs. 22,289.66
199+
Rs. 21,992.47
249+
Rs. 21,695.27
499+
Rs. 21,398.08
999+
Rs. 20,803.69
Couldn't load pickup availability
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- MP
- Bolt Hole Centres:
- 8.11-10.063 inch
Technical
Technical
| Bore | 2-3/4 inch |
|---|---|
| L | 13 inch |
| H | 3.5 inch |
| H1 | 1.126 inch |
| H2 | 7 inch |
| J max | 10.063 inch |
| J min | 8.11 inch |
| G | 1 inch |
| A | 3.5 inch |
| A1 | 2.626 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 13.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-3/4G+insonly">1075-2-3/4G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
