SKU: MP2.1/4-RHP

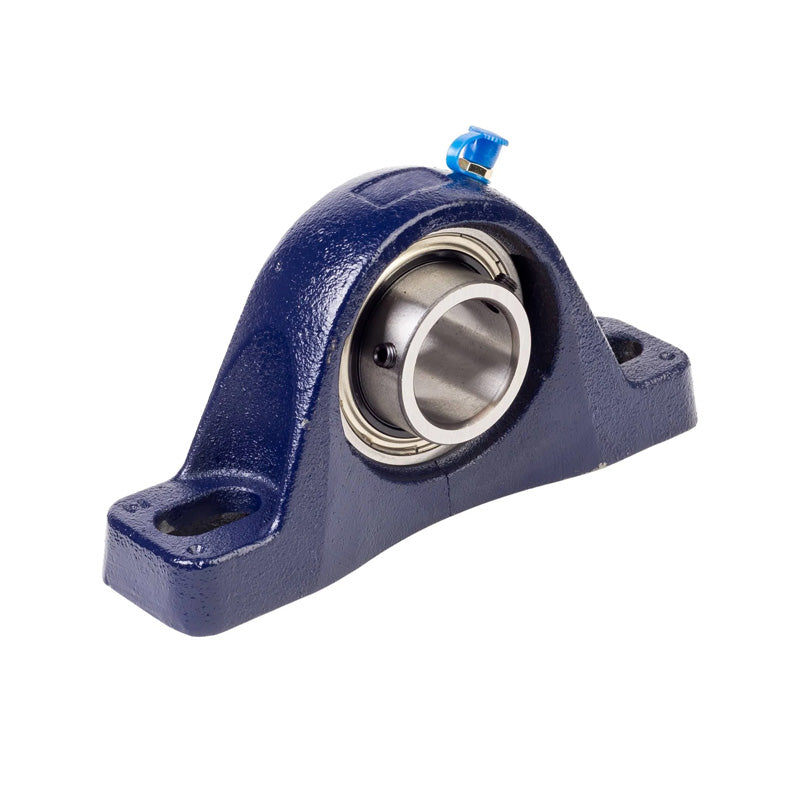

RHP MP2-1/4 Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Grub Screw Insert
RHP MP2-1/4 Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Grub Screw Insert
Regular price
Rs. 17,524.25
ex VAT
Regular price
Sale price
Rs. 17,524.25
ex VAT
In stock
Price Break
10+
Rs. 15,596.58
19+
Rs. 14,720.37
29+
Rs. 14,545.13
39+
Rs. 14,369.89
49+
Rs. 14,194.64
74+
Rs. 14,019.40
99+
Rs. 13,143.19
199+
Rs. 12,967.95
249+
Rs. 12,792.70
499+
Rs. 12,617.46
999+
Rs. 12,266.98
Couldn't load pickup availability
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- MP
- Bolt Hole Centres:
- 6.89-7.874 inch
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 10.252 inch |
| H | 2.75 inch |
| H1 | 1.063 inch |
| H2 | 5.626 inch |
| J max | 7.874 inch |
| J min | 6.89 inch |
| G | 0.75 inch |
| A | 3.126 inch |
| A1 | 2 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 7.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
