SKU: MP1055-1.15/16K-RHP

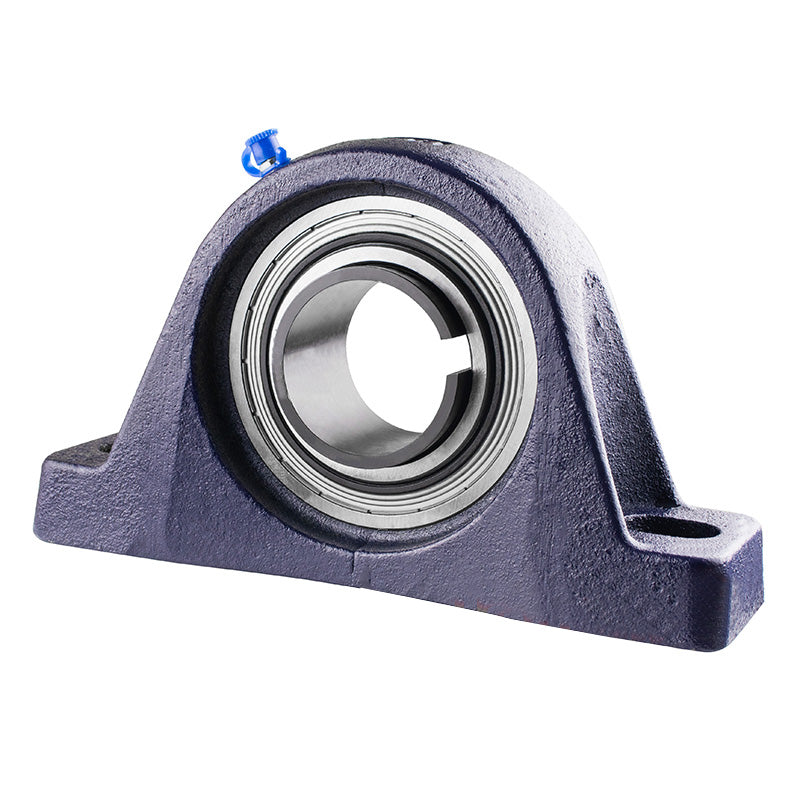

RHP MP1055-1-15/16K Two Bolt Cast Iron Pillow Block with Insert and H311/1-15/16 Taper Sleeve = 1-15/16 inch Shaft Size
RHP MP1055-1-15/16K Two Bolt Cast Iron Pillow Block with Insert and H311/1-15/16 Taper Sleeve = 1-15/16 inch Shaft Size
Regular price
Rs. 18,928.86
Regular price
Sale price
Rs. 18,928.86
Taxes included.
In stock
Price Break
10+
Rs. 16,846.69
19+
Rs. 15,900.24
29+
Rs. 15,710.95
39+
Rs. 15,521.67
49+
Rs. 15,332.38
74+
Rs. 15,143.09
99+
Rs. 14,196.65
199+
Rs. 14,007.36
249+
Rs. 13,818.07
499+
Rs. 13,628.78
999+
Rs. 13,250.20
Description
Description
|
RHP MP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper sleeve bearing insert fitted in the housing complete with taper sleeve, lock nut and tab washer and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 6.398-7.028 inch

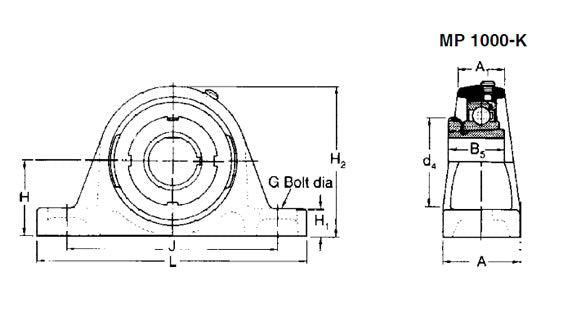

Technical
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 8.641 inch |
| H | 2.5 inch |
| H1 | 0.976 inch |
| H2 | 5.098 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B5 | 1.772 inch |
| d4 | 2.953 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 UNF x 28 TPI |
