• RHP MP1-1/4 Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Insert
1 1

SKU: MP1.1/4-RHP

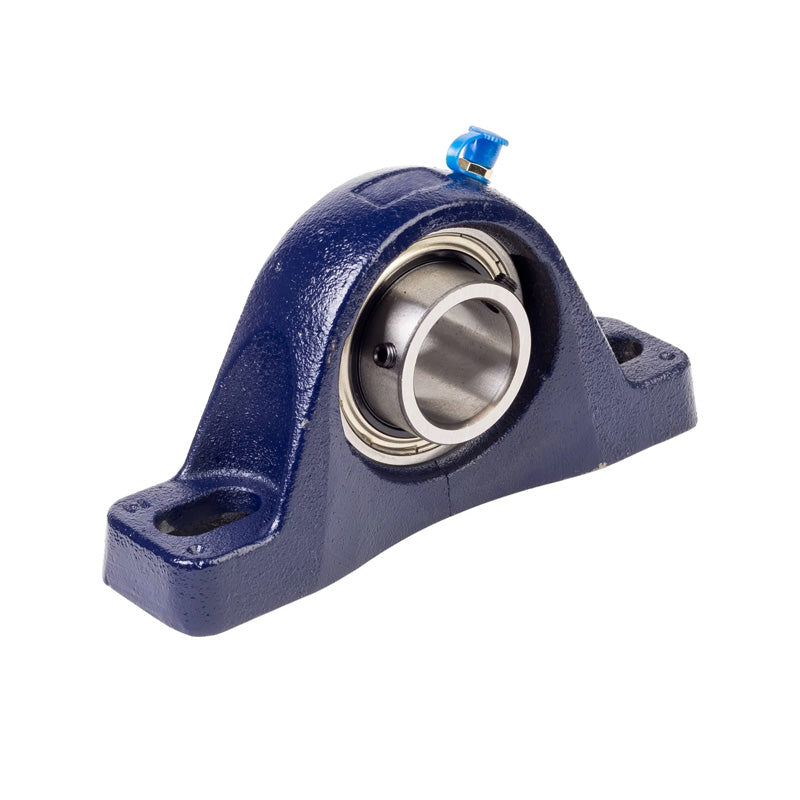

RHP MP1-1/4 Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Insert

RHP MP1-1/4 Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Insert
Rs. 9,531.00
Rs. 9,531.00
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,482.59
19+ Rs. 8,006.04
29+ Rs. 7,910.73
39+ Rs. 7,815.42
49+ Rs. 7,720.11
74+ Rs. 7,624.80
99+ Rs. 7,148.25
199+ Rs. 7,052.94
249+ Rs. 6,957.63
499+ Rs. 6,862.32
999+ Rs. 6,671.70
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, insert extends to front and back
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
MP
Bolt Hole Centres:
4.783-5.374 inch
Technical
Bore 1-1/4 inch
L 6.535 inch
H 1.874 inch
H1 0.689 inch
H2 3.661 inch
J max 5.374 inch
J min 4.783 inch
G 0.5 inch
A 1.752 inch
A1 1.201 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
