SKU: MP-M25-MB

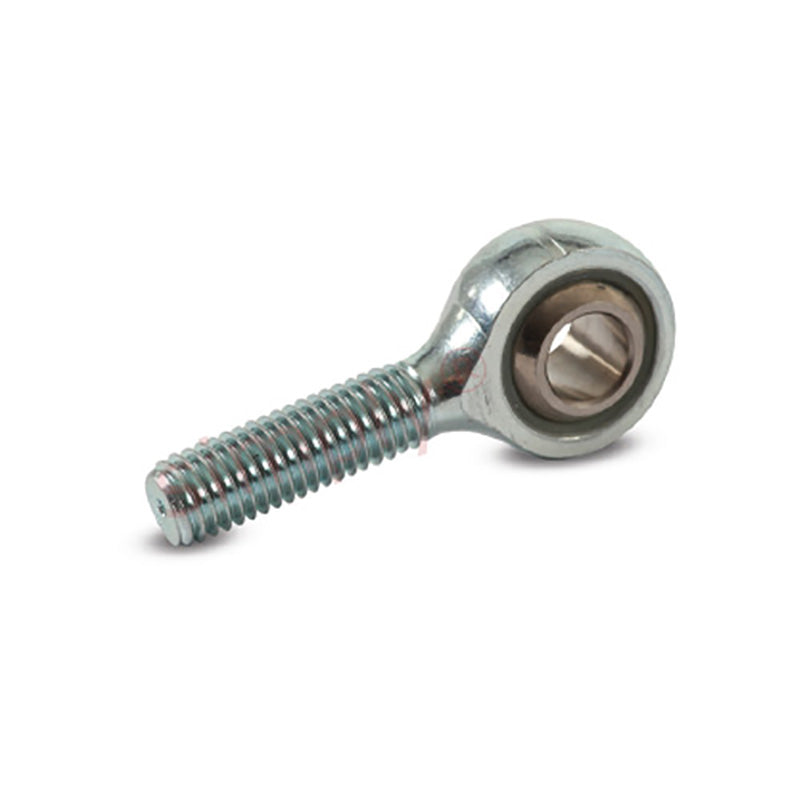

Branded MP-M25 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M24x2 Thread
Branded MP-M25 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M24x2 Thread
Regular price
Rs. 7,452.08
ex VAT
Regular price
Sale price
Rs. 7,452.08
ex VAT
In stock
Price Break
10+
Rs. 6,632.35
19+
Rs. 6,259.75
29+
Rs. 6,185.23
39+
Rs. 6,110.71
49+
Rs. 6,036.18
74+
Rs. 5,961.66
99+
Rs. 5,589.06
199+
Rs. 5,514.54
249+
Rs. 5,440.02
499+
Rs. 5,365.50
999+
Rs. 5,216.46
Couldn't load pickup availability
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 25mm |
|---|---|
| Thread | M24x2 |
| W | 31mm |
| H | 22mm |
| D | 60mm |
| L1 | 94mm |
| L2 | 57mm |
| O | 29.6mm |
| Static load | 67140 N |
