SKU: MP-M16-14C-MB

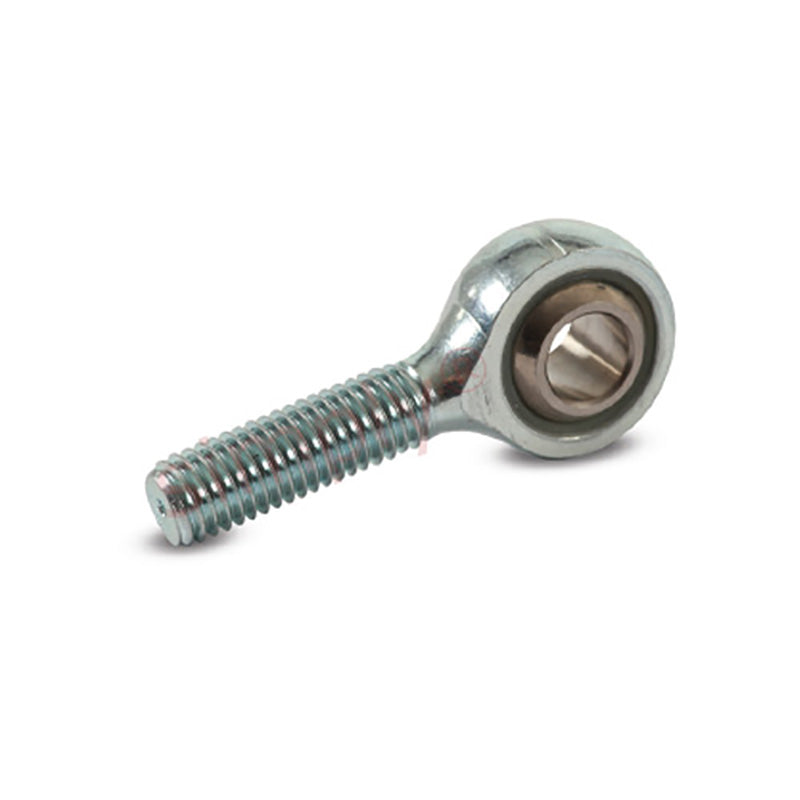

Branded MP-M16-14C Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M16x1.5 Thread
Branded MP-M16-14C Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M16x1.5 Thread
Regular price
Rs. 4,295.55
ex VAT
Regular price
Sale price
Rs. 4,295.55
ex VAT
In stock
Price Break
10+
Rs. 3,823.04
19+
Rs. 3,608.26
29+
Rs. 3,565.31
39+
Rs. 3,522.35
49+
Rs. 3,479.40
74+
Rs. 3,436.44
99+
Rs. 3,221.66
199+
Rs. 3,178.71
249+
Rs. 3,135.75
499+
Rs. 3,092.80
999+
Rs. 3,006.89
Couldn't load pickup availability
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 14mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 14mm |
|---|---|
| Thread | M16x1.5 |
| W | 21mm |
| H | 15mm |
| D | 38mm |
| L1 | 66mm |
| L2 | 40mm |
| O | 19.3mm |
| Static load | 37130 N |
