SKU: MP-M12C-MB

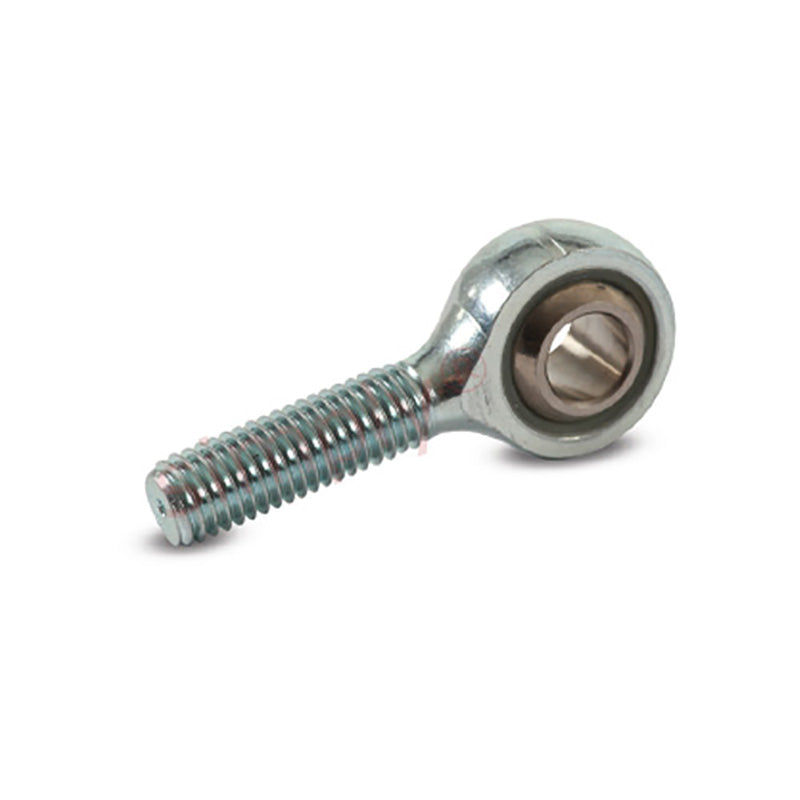

Branded MP-M12C Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M12x1.25 Thread - Allow 7-10 Days
Branded MP-M12C Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M12x1.25 Thread - Allow 7-10 Days
Regular price
Rs. 1,761.39
ex VAT
Regular price
Sale price
Rs. 1,761.39
ex VAT
In stock
Price Break
10+
Rs. 1,567.64
19+
Rs. 1,479.57
29+
Rs. 1,461.95
39+
Rs. 1,444.34
49+
Rs. 1,426.73
74+
Rs. 1,409.11
99+
Rs. 1,321.04
199+
Rs. 1,303.43
249+
Rs. 1,285.81
499+
Rs. 1,268.20
999+
Rs. 1,232.97
Couldn't load pickup availability
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M12x1.25
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 12mm |
|---|---|
| Thread | M12x1.25 |
| W | 16mm |
| H | 12mm |
| D | 30mm |
| L1 | 54mm |
| L2 | 33mm |
| O | 15.4mm |
| Static load | 22900 N |
