SKU: MP-M12-DUN

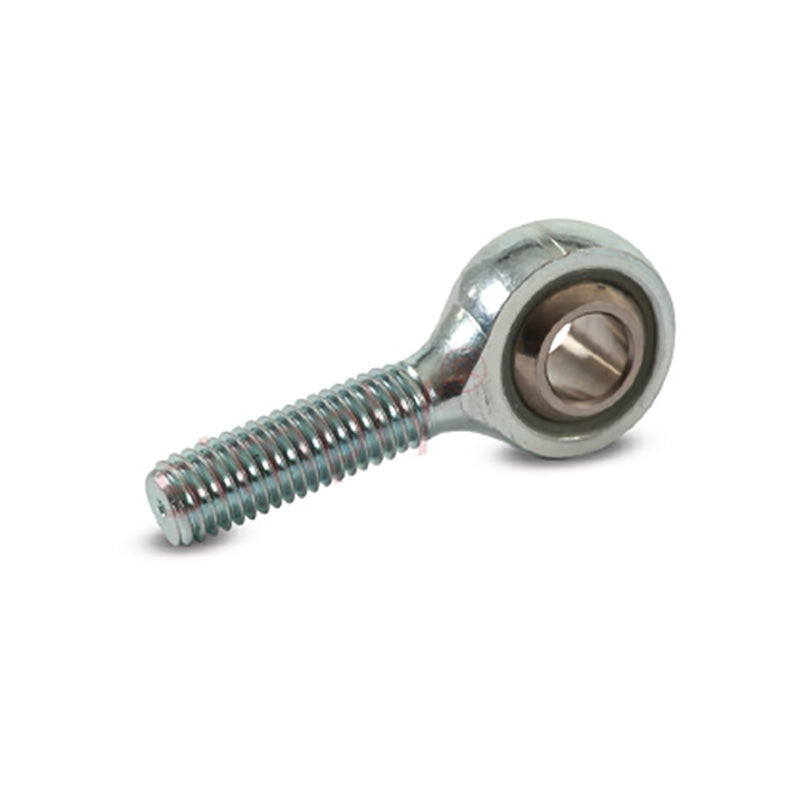

Dunlop MP-M12 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M12x1.75 Thread
Dunlop MP-M12 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M12x1.75 Thread
Regular price
Rs. 1,765.38
Regular price
Sale price
Rs. 1,765.38
Taxes included.
In stock
Price Break
10+
Rs. 1,571.19
19+
Rs. 1,482.92
29+
Rs. 1,465.27
39+
Rs. 1,447.61
49+
Rs. 1,429.96
74+
Rs. 1,412.30
99+
Rs. 1,324.04
199+
Rs. 1,306.38
249+
Rs. 1,288.73
499+
Rs. 1,271.07
999+
Rs. 1,235.77
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 12mm |
|---|---|
| Thread | M12x1.75 |
| W | 16mm |
| H | 12mm |
| D | 30mm |
| L1 | 54mm |
| L2 | 33mm |
| O | 15.4mm |
| Static load | 22900 N |
