SKU: MP-10F-MB

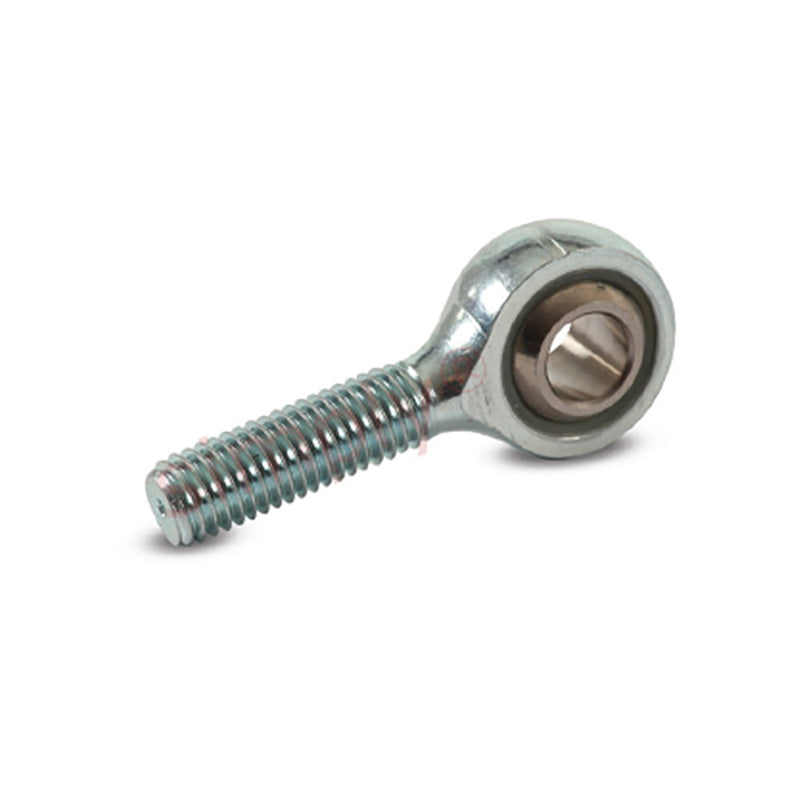

Branded MP-10F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 5/8 BSF Thread - Allow 7-10 Days
Branded MP-10F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 5/8 BSF Thread - Allow 7-10 Days
Regular price
Rs. 3,373.25
ex VAT
Regular price
Sale price
Rs. 3,373.25
ex VAT
In stock
Price Break
10+
Rs. 3,002.19
19+
Rs. 2,833.53
29+
Rs. 2,799.80
39+
Rs. 2,766.07
49+
Rs. 2,732.33
74+
Rs. 2,698.60
99+
Rs. 2,529.94
199+
Rs. 2,496.21
249+
Rs. 2,462.47
499+
Rs. 2,428.74
999+
Rs. 2,361.28
Couldn't load pickup availability
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 5/8 BSF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 5/8 inch |
|---|---|
| Thread | 5/8 BSF |
| W | 0.75 inch |
| H | 0.562 inch |
| D | 1.5 inch |
| L1 | 2.625 inch |
| L2 | 1.625 inch |
| O | 0.811 inch |
| Static load | 32000 N |
