SKU: MP-08F-DUN

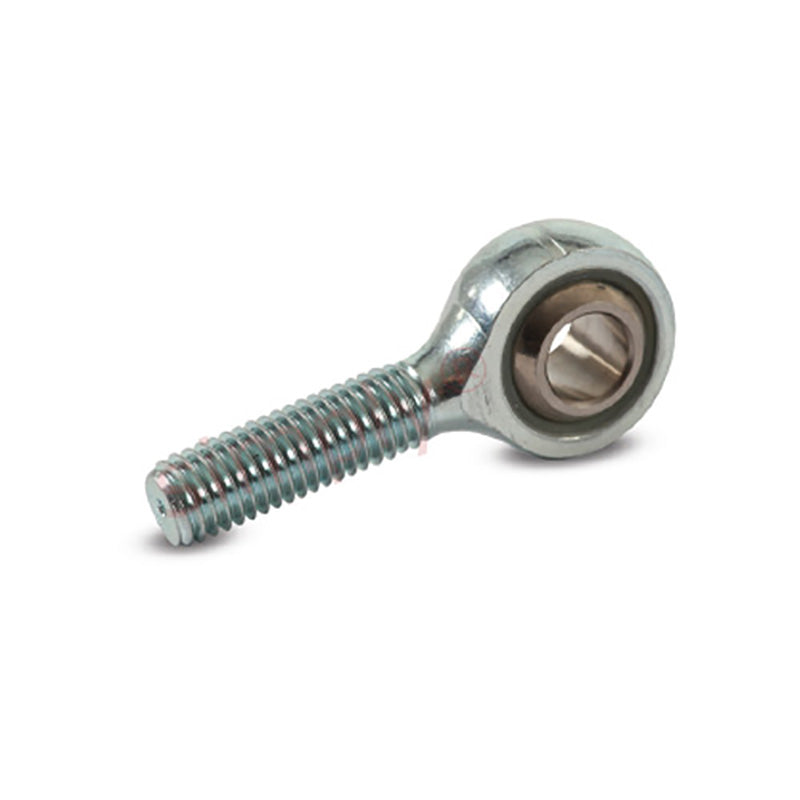

Dunlop MP-08F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread
Dunlop MP-08F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread
Regular price
Rs. 3,178.71
Regular price
Sale price
Rs. 3,178.71
Taxes included.
In stock
Price Break
10+
Rs. 2,829.05
19+
Rs. 2,670.12
29+
Rs. 2,638.33
39+
Rs. 2,606.54
49+
Rs. 2,574.76
74+
Rs. 2,542.97
99+
Rs. 2,384.03
199+
Rs. 2,352.25
249+
Rs. 2,320.46
499+
Rs. 2,288.67
999+
Rs. 2,225.10
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 1/2 BSF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 1/2 inch |
|---|---|
| Thread | 1/2 BSF |
| W | 0.652 inch |
| H | 0.5 inch |
| D | 1.312 inch |
| L1 | 2.438 inch |
| L2 | 1.5 inch |
| O | 0.7 inch |
| Static load | 28900 N |
