SKU: MP-06-MB

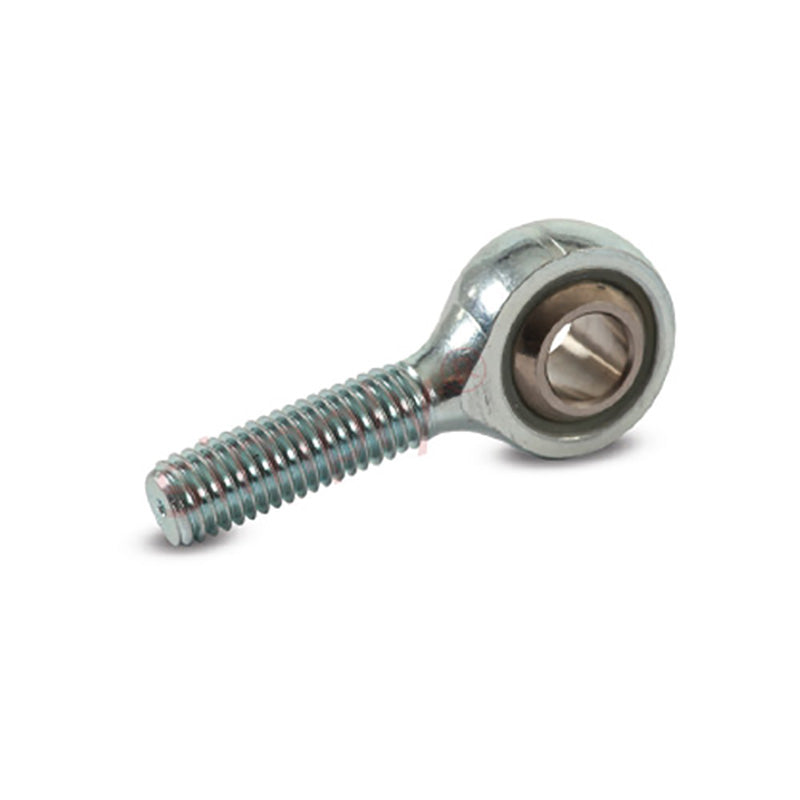

Branded MP-06 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/8 UNF Thread
Branded MP-06 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/8 UNF Thread
Regular price
Rs. 1,619.44
Regular price
Sale price
Rs. 1,619.44
Taxes included.
In stock
Price Break
10+
Rs. 1,441.30
19+
Rs. 1,360.33
29+
Rs. 1,344.14
39+
Rs. 1,327.94
49+
Rs. 1,311.75
74+
Rs. 1,295.55
99+
Rs. 1,214.58
199+
Rs. 1,198.39
249+
Rs. 1,182.19
499+
Rs. 1,166.00
999+
Rs. 1,133.61
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 3/8 UNF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 3/8 inch |
|---|---|
| Thread | 3/8 UNF |
| W | 0.5 inch |
| H | 0.406 inch |
| D | 1 inch |
| L1 | 1.938 inch |
| L2 | 1.25 inch |
| O | 0.516 inch |
| Static load | 16900 N |
