SKU: MP-06/1-DUN

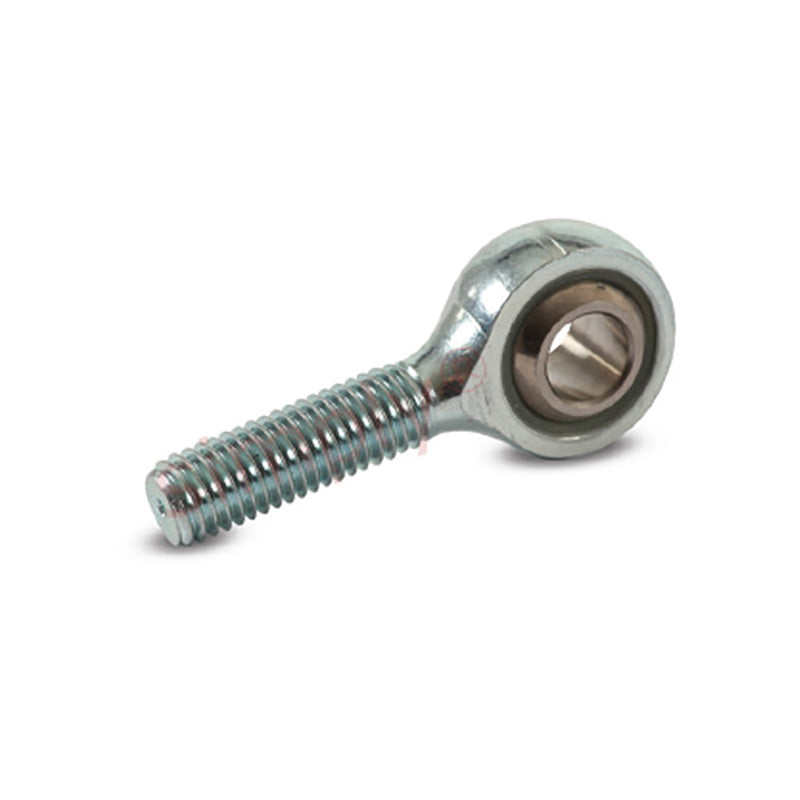

Dunlop MP-06/1 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/8 UNF Thread - Allow 7-10 Days
Dunlop MP-06/1 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/8 UNF Thread - Allow 7-10 Days
Regular price
Rs. 1,753.48
ex VAT
Regular price
Sale price
Rs. 1,753.48
ex VAT
In stock
Price Break
10+
Rs. 1,560.60
19+
Rs. 1,472.92
29+
Rs. 1,455.39
39+
Rs. 1,437.85
49+
Rs. 1,420.32
74+
Rs. 1,402.78
99+
Rs. 1,315.11
199+
Rs. 1,297.58
249+
Rs. 1,280.04
499+
Rs. 1,262.51
999+
Rs. 1,227.44
Couldn't load pickup availability
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 3/8 UNF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 10mm |
|---|---|
| Thread | 3/8 UNF |
| W | 0.5 inch |
| H | 0.406 inch |
| D | 1 inch |
| L1 | 1.938 inch |
| L2 | 1.25 inch |
| O | 0.516 inch |
| Static load | 16900 N |
