• RHP MFC95 Four Bolt Round Cast Iron Flanged Bearing Unit and 95mm Insert
1 1

SKU: MFC95-RHP

RHP MFC95 Four Bolt Round Cast Iron Flanged Bearing Unit and 95mm Insert

RHP MFC95 Four Bolt Round Cast Iron Flanged Bearing Unit and 95mm Insert
Rs. 97,742.22 ex VAT
Rs. 97,742.22 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 86,990.58
19+ Rs. 82,103.46
29+ Rs. 81,126.04
39+ Rs. 80,148.62
49+ Rs. 79,171.20
74+ Rs. 78,193.78
99+ Rs. 73,306.67
199+ Rs. 72,329.24
249+ Rs. 71,351.82
499+ Rs. 70,374.40
999+ Rs. 68,419.55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

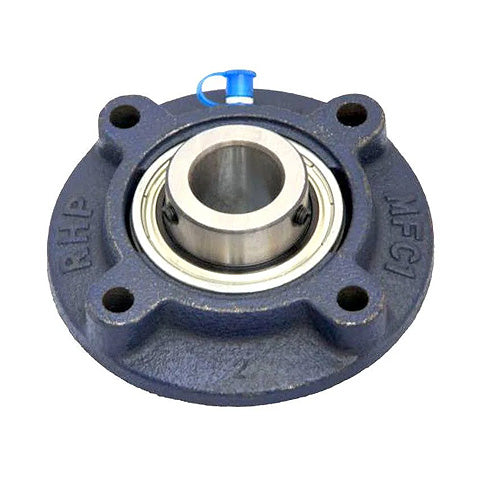

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
95mm
Style:
MFC
Pitch Circle Diameter:
260.35mm
Technical
Bore 95mm
L 298.4mm
H 228.6mm
J 260.35mm
G 20mm
A1 88.9mm
A4 46mm
A5 12.7mm
B 117.48mm
s 49.27mm
d1 130.43mm
Dynamic load 157000 N
Static load 122000 N
Rec max speed 1600 rpm
Weight 17.7 kg
Insert <a href="advanced_search_result.php?keywords=3095-95G+insonly">3095-95G Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
