• RHP MFC80 Four Bolt Round Cast Iron Flanged Bearing Unit and 80mm Insert
1 1

SKU: MFC80-RHP

RHP MFC80 Four Bolt Round Cast Iron Flanged Bearing Unit and 80mm Insert

RHP MFC80 Four Bolt Round Cast Iron Flanged Bearing Unit and 80mm Insert
Rs. 26,930.97 ex VAT
Rs. 26,930.97 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 23,968.56
19+ Rs. 22,622.01
29+ Rs. 22,352.71
39+ Rs. 22,083.40
49+ Rs. 21,814.09
74+ Rs. 21,544.78
99+ Rs. 20,198.23
199+ Rs. 19,928.92
249+ Rs. 19,659.61
499+ Rs. 19,390.30
999+ Rs. 18,851.68
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

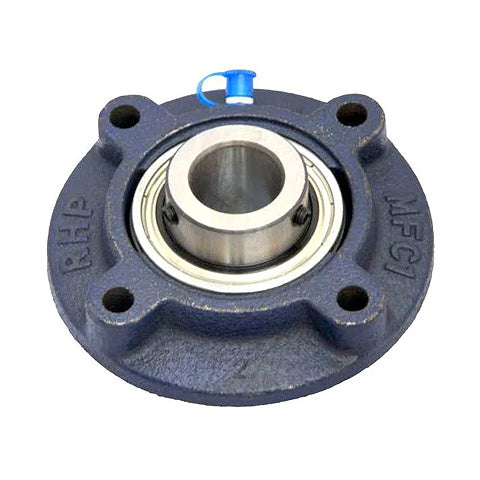

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
80mm
Style:
MFC
Pitch Circle Diameter:
190.5mm
Technical
Bore 80mm
L 222.2mm
H 161.92mm
J 190.5mm
G 16mm
A1 50.8mm
A4 16.7mm
A5 12.7mm
B 82.55mm
s 33.37mm
d1 98.5mm
Dynamic load 71500 N
Static load 54500 N
Rec max speed 2150 rpm
Weight 5.4 kg
Insert <a href="advanced_search_result.php?keywords=1080-80G+insonly">1080-80G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
