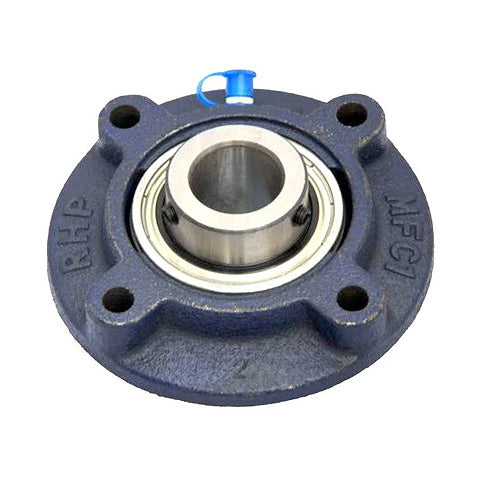

• RHP MFC55 Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
1 1

SKU: MFC55-RHP

RHP MFC55 Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert

RHP MFC55 Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
Rs. 19,554.87
Rs. 19,554.87
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 17,403.83
19+ Rs. 16,426.09
29+ Rs. 16,230.54
39+ Rs. 16,034.99
49+ Rs. 15,839.44
74+ Rs. 15,643.90
99+ Rs. 14,666.15
199+ Rs. 14,470.60
249+ Rs. 14,275.06
499+ Rs. 14,079.51
999+ Rs. 13,688.41
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
55mm
Style:
MFC
Pitch Circle Diameter:
152.4mm

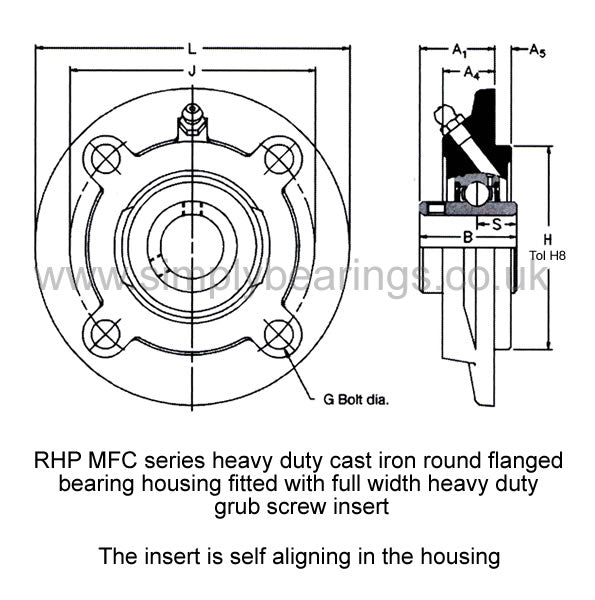

Technical
Bore 55mm
L 181mm
H 127mm
J 152.4mm
G 12mm
A1 42.85mm
A4 15.9mm
A5 9.5mm
B 65.07mm
s 25.45mm
d1 75.34mm
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 3.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-55G+insonly">1060-55G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
