SKU: MFC50-RHP

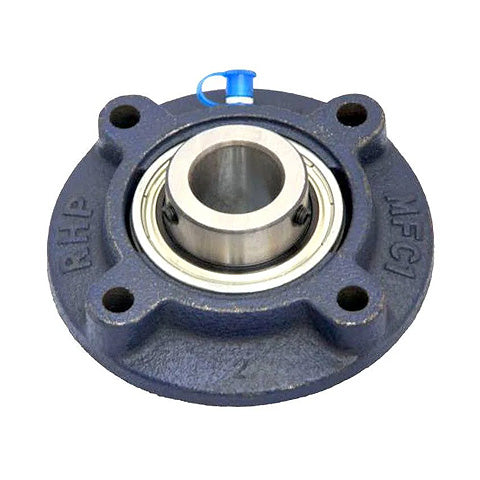

RHP MFC50 Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP MFC50 Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
Regular price
Rs. 16,894.86
ex VAT
Regular price
Sale price
Rs. 16,894.86
ex VAT
In stock
Price Break
10+
Rs. 15,036.43
19+
Rs. 14,191.68
29+
Rs. 14,022.73
39+
Rs. 13,853.79
49+
Rs. 13,684.84
74+
Rs. 13,515.89
99+
Rs. 12,671.15
199+
Rs. 12,502.20
249+
Rs. 12,333.25
499+
Rs. 12,164.30
999+
Rs. 11,826.40
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- MFC
- Pitch Circle Diameter:
- 136.52mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 161.9mm |
| H | 114.3mm |
| J | 136.52mm |
| G | 10mm |
| A1 | 39.67mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 55.55mm |
| s | 22.28mm |
| d1 | 68.81mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-50G+insonly">1055-50G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
