SKU: MFC40-RHP
RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
Rs. 11,481.06
ex VAT
Regular price
Sale price
Rs. 11,481.06
ex VAT
In stock
Price Break
10+
Rs. 10,218.14
19+
Rs. 9,644.09
29+
Rs. 9,529.28
39+
Rs. 9,414.47
49+
Rs. 9,299.66
74+
Rs. 9,184.85
99+
Rs. 8,610.80
199+
Rs. 8,495.98
249+
Rs. 8,381.17
499+
Rs. 8,266.36
999+
Rs. 8,036.74
Couldn't load pickup availability
Description
Description
|

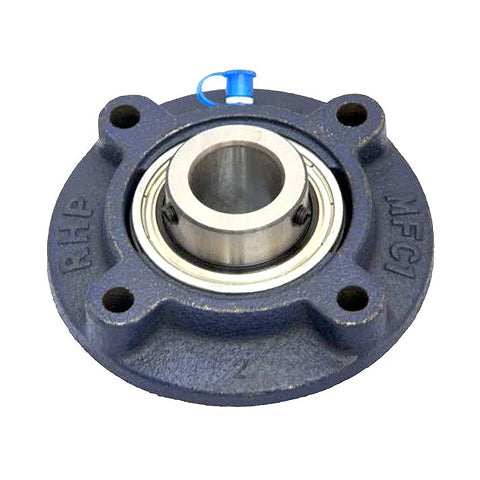

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- MFC
- Pitch Circle Diameter:
- 111.12mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 133.4mm |
| H | 92.07mm |
| J | 111.12mm |
| G | 10mm |
| A1 | 38.1mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
