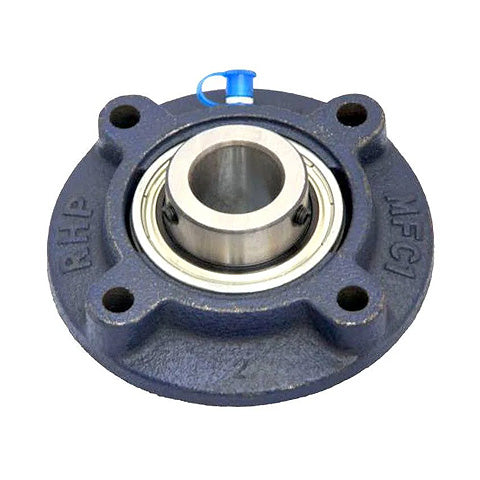

• RHP MFC2R Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
1 1

SKU: MFC2R-RHP

RHP MFC2R Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert

RHP MFC2R Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
Rs. 15,378.89
Rs. 15,378.89
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 13,687.21
19+ Rs. 12,918.27
29+ Rs. 12,764.48
39+ Rs. 12,610.69
49+ Rs. 12,456.90
74+ Rs. 12,303.11
99+ Rs. 11,534.17
199+ Rs. 11,380.38
249+ Rs. 11,226.59
499+ Rs. 11,072.80
999+ Rs. 10,765.22
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
MFC
Pitch Circle Diameter:
130.18mm = 5.125 (5-1/8) inch
Technical
Bore 2 inch
L 6.126 inch
H 4.25 inch
J 5.125 inch
G 0.4375 inch
A1 1.562 inch
A4 0.748 inch
A5 0.252 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
