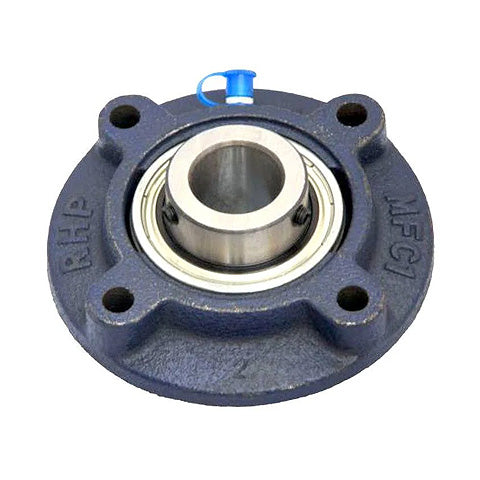

• RHP MFC25 Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
1 1

SKU: MFC25-RHP

RHP MFC25 Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert

RHP MFC25 Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
Rs. 8,829.24 ex VAT
Rs. 8,829.24 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 7,858.02
19+ Rs. 7,416.56
29+ Rs. 7,328.27
39+ Rs. 7,239.98
49+ Rs. 7,151.68
74+ Rs. 7,063.39
99+ Rs. 6,621.93
199+ Rs. 6,533.64
249+ Rs. 6,445.35
499+ Rs. 6,357.05
999+ Rs. 6,180.47
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
MFC
Pitch Circle Diameter:
92.08mm
Technical
Bore 25mm
L 111.1mm
H 76.2mm
J 92.08mm
G 8mm
A1 33.32mm
A4 21mm
A5 6.4mm
B 38.1mm
s 15.93mm
d1 40mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
