• RHP MFC1 Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert
1 1

SKU: MFC1-RHP

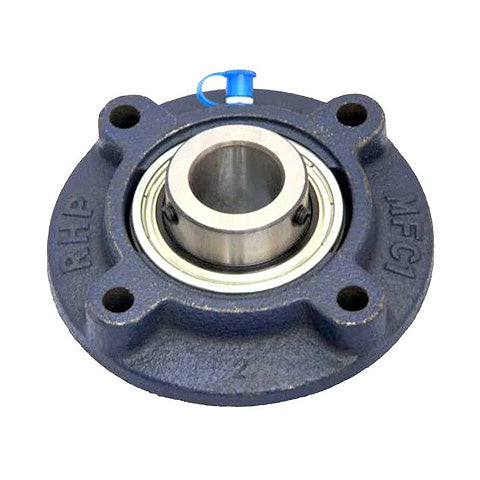

RHP MFC1 Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert

RHP MFC1 Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert
Rs. 9,986.74
Rs. 9,986.74
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,888.20
19+ Rs. 8,388.86
29+ Rs. 8,288.99
39+ Rs. 8,189.13
49+ Rs. 8,089.26
74+ Rs. 7,989.39
99+ Rs. 7,490.06
199+ Rs. 7,390.19
249+ Rs. 7,290.32
499+ Rs. 7,190.45
999+ Rs. 6,990.72
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Style:
MFC
Pitch Circle Diameter:
92.08mm = 3.625 (3-5/8) inch
Technical
Bore 1 inch
L 4.374 inch
H 3 inch
J 3.625 inch
G 0.3125 inch
A1 1.312 inch
A4 0.827 inch
A5 0.252 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
