SKU: MFC1.1/4R-RHP

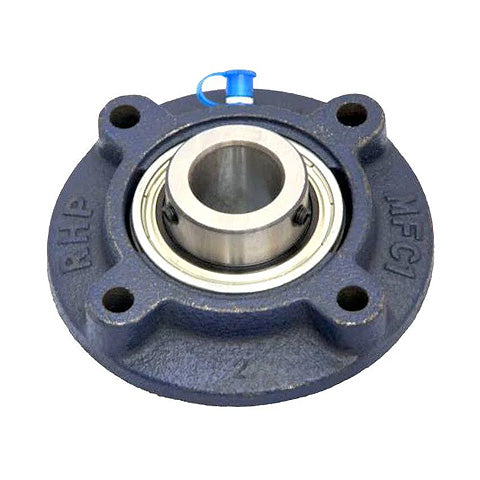

RHP MFC1-1/4R Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
RHP MFC1-1/4R Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
Regular price
Rs. 9,879.08
ex VAT
Regular price
Sale price
Rs. 9,879.08
ex VAT
In stock
Price Break
10+
Rs. 8,792.38
19+
Rs. 8,298.43
29+
Rs. 8,199.64
39+
Rs. 8,100.85
49+
Rs. 8,002.05
74+
Rs. 7,903.26
99+
Rs. 7,409.31
199+
Rs. 7,310.52
249+
Rs. 7,211.73
499+
Rs. 7,112.94
999+
Rs. 6,915.36
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 92.08mm = 3.625 (3-5/8) inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4.374 inch |
| H | 3 inch |
| J | 3.625 inch |
| G | 0.3125 inch |
| A1 | 1.312 inch |
| A4 | 0.827 inch |
| A5 | 0.252 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/4G+insonly">1030-1-1/4G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
