SKU: MB.9060.DLX

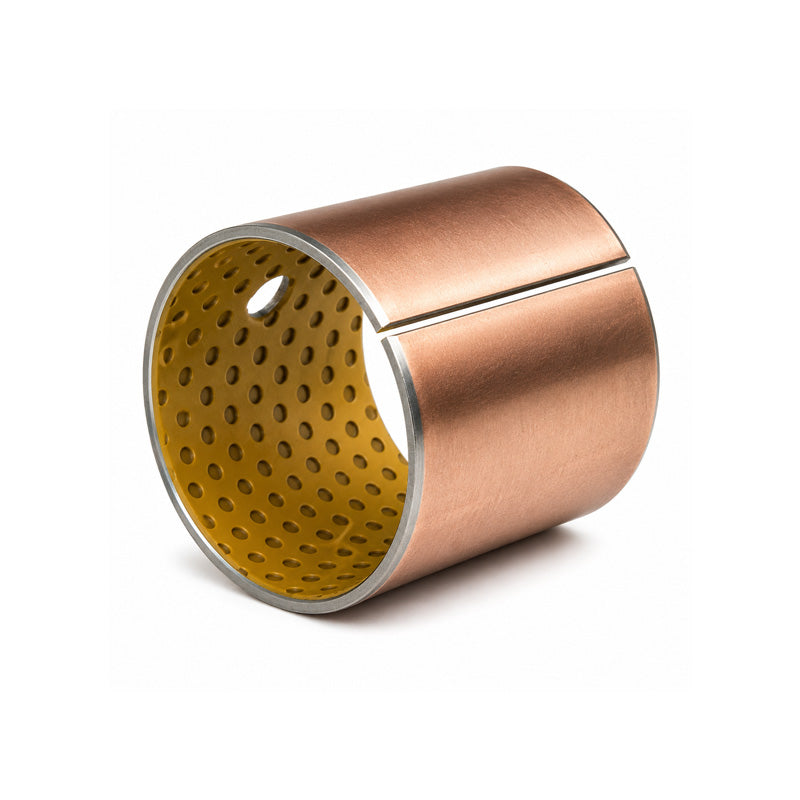

MB9060X Bronze Backed Steel Bush 90x95x60mm
MB9060X Bronze Backed Steel Bush 90x95x60mm
Regular price
Rs. 1,396.68
Regular price
Sale price
Rs. 1,396.68
Taxes included.
Equivalent to: PAP9060P11
In stock
Price Break
10+
Rs. 1,243.05
19+
Rs. 1,173.21
29+
Rs. 1,159.24
39+
Rs. 1,145.28
49+
Rs. 1,131.31
74+
Rs. 1,117.34
99+
Rs. 1,047.51
199+
Rs. 1,033.54
249+
Rs. 1,019.58
499+
Rs. 1,005.61
999+
Rs. 977.68
Description
Description
|
Bronze Backed Plain Steel Bush: Made from a composite material developed specifically to operate with minimal lubrication. This bush bearing consists of three bonded layers - a steel backing strip and sintered porous bronze matrix, impregnated and overlaid with a pigmented acetal copolymer bearing material. The bearing surface is normally provided with a uniform pattern of indents which serve as a reservoir for grease and is designed to provide the optimum distribution of the lubricant over the bearing surface. |
Equivalent: PAP9060P11
- Brand / Quality:
- Simply Wrapped Steel Bushes - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 95mm
- Length:
- 60mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 95mm |
| b | 60mm |
| Structure | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | 140 N/mm<sup>2</sup> |
| Maximum dynamic load | 70 N/mm<sup>2</sup> |
| Maximum sliding speed | 2.5m/s with grease |
| Operating temperature | -40°C to +110° C |
| Intermittent maximum temperature | 130° C |
| Thermal conductivity | 2 W/mK |
| Coefficient of friction | 0.05 to 0.12 with grease |
| Recommended housing tolerance | H7 |
| Recommended shaft tolerance | h8 |
| Recommended shaft finish | HB > 200 |
| Recommended shaft hardness | HB > 200 |
