SKU: MB.1525.DLX

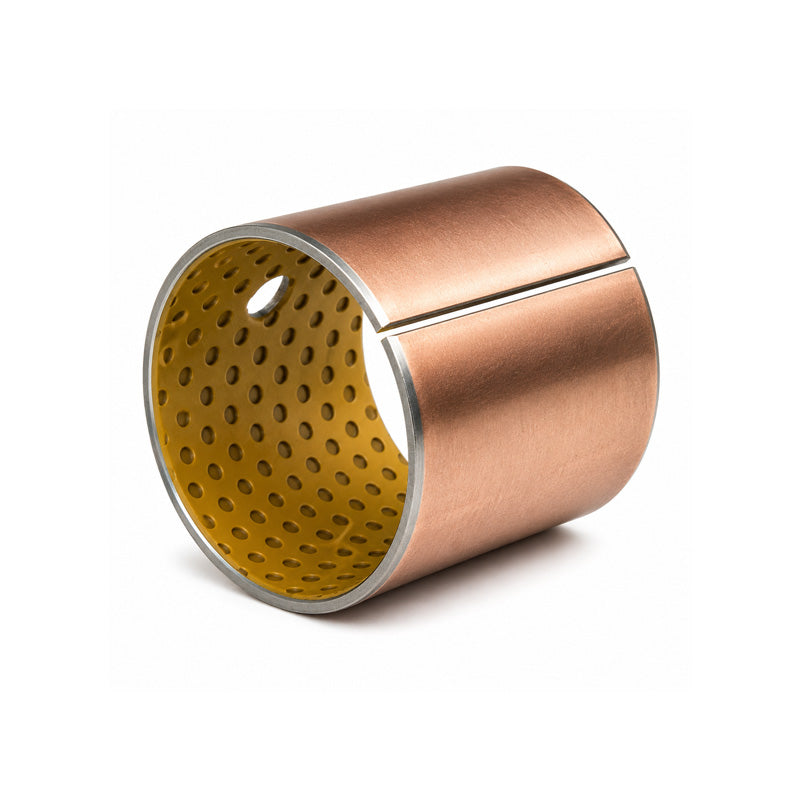

MB1525X Bronze Backed Steel Bush 15x17x25mm
MB1525X Bronze Backed Steel Bush 15x17x25mm
Regular price
Rs. 435.26
Regular price
Sale price
Rs. 435.26
Taxes included.
Equivalent to: PAP1525P11
In stock
Price Break
10+
Rs. 387.38
19+
Rs. 365.62
29+
Rs. 361.27
39+
Rs. 356.91
49+
Rs. 352.56
74+
Rs. 348.21
99+
Rs. 326.45
199+
Rs. 322.09
249+
Rs. 317.74
499+
Rs. 313.39
999+
Rs. 304.68
Description
Description
|
Bronze Backed Plain Steel Bush: Made from a composite material developed specifically to operate with minimal lubrication. This bush bearing consists of three bonded layers - a steel backing strip and sintered porous bronze matrix, impregnated and overlaid with a pigmented acetal copolymer bearing material. The bearing surface is normally provided with a uniform pattern of indents which serve as a reservoir for grease and is designed to provide the optimum distribution of the lubricant over the bearing surface. |
Equivalent: PAP1525P11
- Brand / Quality:
- Simply Wrapped Steel Bushes - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 17mm
- Length:
- 25mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 17mm |
| b | 25mm |
| Structure | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | 140 N/mm<sup>2</sup> |
| Maximum dynamic load | 70 N/mm<sup>2</sup> |
| Maximum sliding speed | 2.5m/s with grease |
| Operating temperature | -40°C to +110° C |
| Intermittent maximum temperature | 130° C |
| Thermal conductivity | 2 W/mK |
| Coefficient of friction | 0.05 to 0.12 with grease |
| Recommended housing tolerance | H7 |
| Recommended shaft tolerance | h8 |
| Recommended shaft finish | HB > 200 |
| Recommended shaft hardness | HB > 200 |
