SKU: MB.0808.DLX

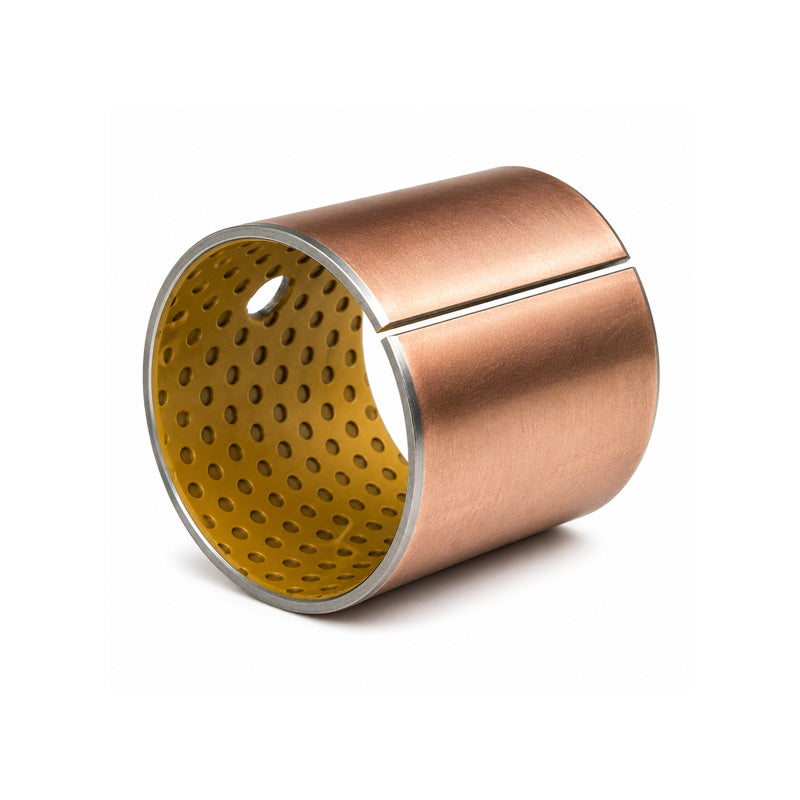

MB0808X Bronze Backed Steel Bush 8x10x8mm
MB0808X Bronze Backed Steel Bush 8x10x8mm
Regular price
Rs. 393.02
Regular price
Sale price
Rs. 393.02
Taxes included.
Equivalent to: PAP0808P11
In stock
Price Break
10+
Rs. 349.79
19+
Rs. 330.14
29+
Rs. 326.21
39+
Rs. 322.28
49+
Rs. 318.35
74+
Rs. 314.42
99+
Rs. 294.77
199+
Rs. 290.83
249+
Rs. 286.90
499+
Rs. 282.97
999+
Rs. 275.11
Description
Description
|
Bronze Backed Plain Steel Bush: Made from a composite material developed specifically to operate with minimal lubrication. This bush bearing consists of three bonded layers - a steel backing strip and sintered porous bronze matrix, impregnated and overlaid with a pigmented acetal copolymer bearing material. The bearing surface is normally provided with a uniform pattern of indents which serve as a reservoir for grease and is designed to provide the optimum distribution of the lubricant over the bearing surface. |
Equivalent: PAP0808P11
- Brand / Quality:
- Simply Wrapped Steel Bushes - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 10mm
- Length:
- 8mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 10mm |
| b | 8mm |
| Structure | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | 140 N/mm<sup>2</sup> |
| Maximum dynamic load | 70 N/mm<sup>2</sup> |
| Maximum sliding speed | 2.5m/s with grease |
| Operating temperature | -40°C to +110° C |
| Intermittent maximum temperature | 130° C |
| Thermal conductivity | 2 W/mK |
| Coefficient of friction | 0.05 to 0.12 with grease |
| Recommended housing tolerance | H7 |
| Recommended shaft tolerance | h8 |
| Recommended shaft finish | HB > 200 |
| Recommended shaft hardness | HB > 200 |
