SKU: M8X1.25X10MM

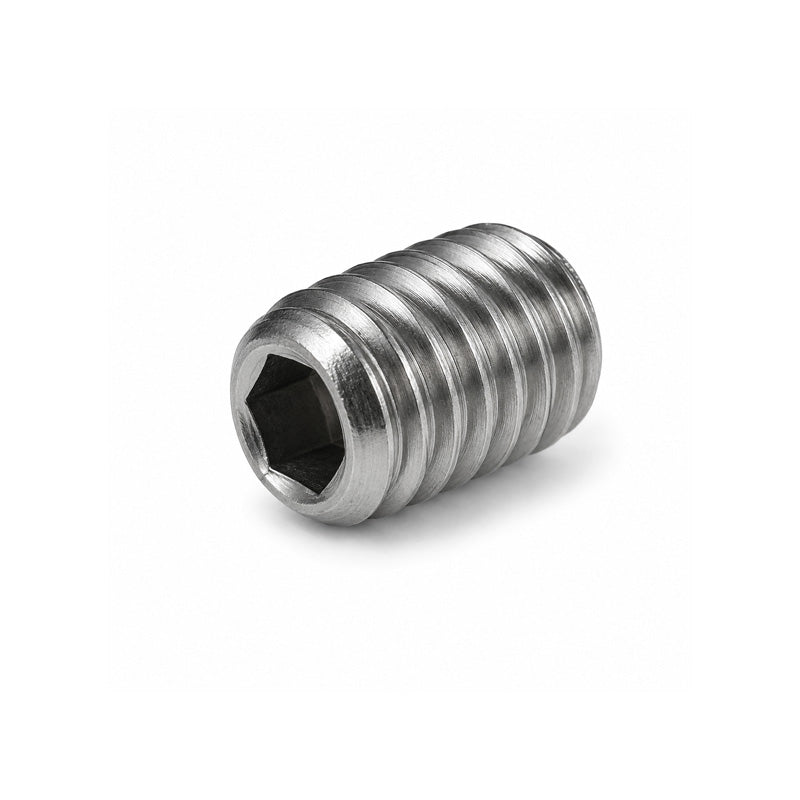

M8x10 Metric Steel Cup Point Grub Screw 10mm Length 1.25mm Pitch
M8x10 Metric Steel Cup Point Grub Screw 10mm Length 1.25mm Pitch
Regular price
Rs. 108.82
Regular price
Sale price
Rs. 108.82
Taxes included.
In stock
Price Break
10+
Rs. 54.41
20+
Rs. 37.00
50+
Rs. 22.85
100+
Rs. 16.32
500+
Rs. 8.71
1000+
Rs. 6.53
Description
Description
Steel Cup Point Grub Screws: Grub screws are used to fix rotating parts to shafts. Cup point grub screws have a concave tip and are the most commonly used type of screw. They are headless screws which are threaded through a hole on the rotating part and tightened until the hexagon grub screw is flush with the shaft. This ensures the strength of the fixing while leaving no external extrusion. Grub screws are a small but extremely important part of many drive mechanisms and other machinery which uses moving and rotating parts.
Note: These set screws are designed for pressure loads and are not suitable for tensile- or shear loads.
Note: These set screws are designed for pressure loads and are not suitable for tensile- or shear loads.
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M8x10
- Material:
- Steel
- Style:
- Cup
- Pitch:
- 1.25mm
Technical
Technical
| Thread Diameter (d) | M8 |
|---|---|
| Length (L) | 10mm |
| Pitch | 1.25mm |
| Hex Size (s) | 4mm |
| dv | 5mm |
| t (min.) | 3mm |
| Material | Steel |
| Thread Type | Metric |
