SKU: M-UELP210D1-NTN

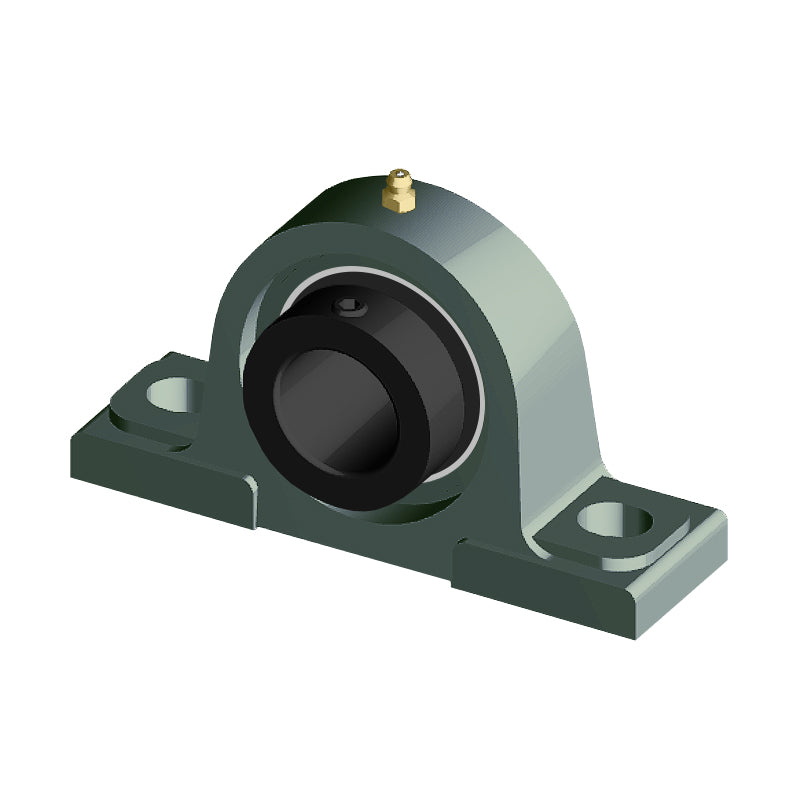

NTN M-UELP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 7,371.32
Regular price
Sale price
Rs. 7,371.32
Taxes included.
In stock
Price Break
10+
Rs. 6,560.47
19+
Rs. 6,191.91
29+
Rs. 6,118.20
39+
Rs. 6,044.48
49+
Rs. 5,970.77
74+
Rs. 5,897.06
99+
Rs. 5,528.49
199+
Rs. 5,454.78
249+
Rs. 5,381.06
499+
Rs. 5,307.35
999+
Rs. 5,159.92
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 57.2mm |
| L | 206mm |
| J | 159mm |
| A | 60mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 21mm |
| H<sub>2</sub> | 114mm |
| L<sub>1</sub> | 65mm |
| B<sub>1</sub> | 62.7mm |
| S | 24.6mm |
| Fixing bolt | M16 |
| Mass | 2.9 kg |
