SKU: M-UELP209D1-NTN

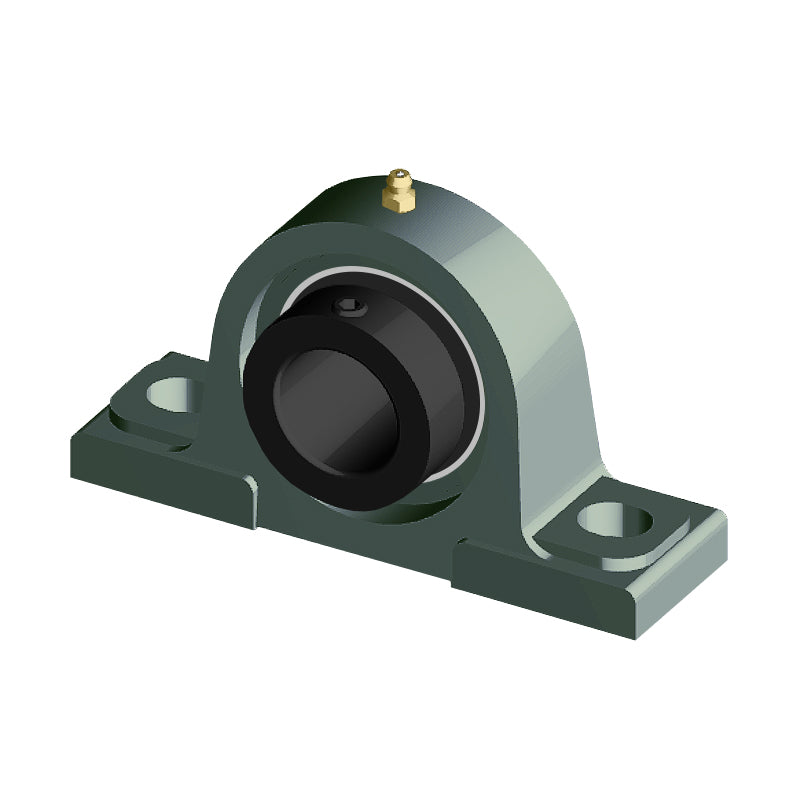

NTN M-UELP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 8,504.29
Regular price
Sale price
Rs. 8,504.29
Taxes included.
In stock
Price Break
5+
Rs. 8,419.25
10+
Rs. 8,079.08
20+
Rs. 7,908.99
50+
Rs. 7,653.86
100+
Rs. 7,483.78
500+
Rs. 7,058.56
1000+
Rs. 5,953.00
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UELP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| H | 54mm |
| L | 190mm |
| J | 146mm |
| A | 54mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 20mm |
| H<sub>2</sub> | 106mm |
| L<sub>1</sub> | 60mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| Fixing bolt | M14 |
| Mass | 2.3 kg |
