SKU: M-UELFC208D1-NTN

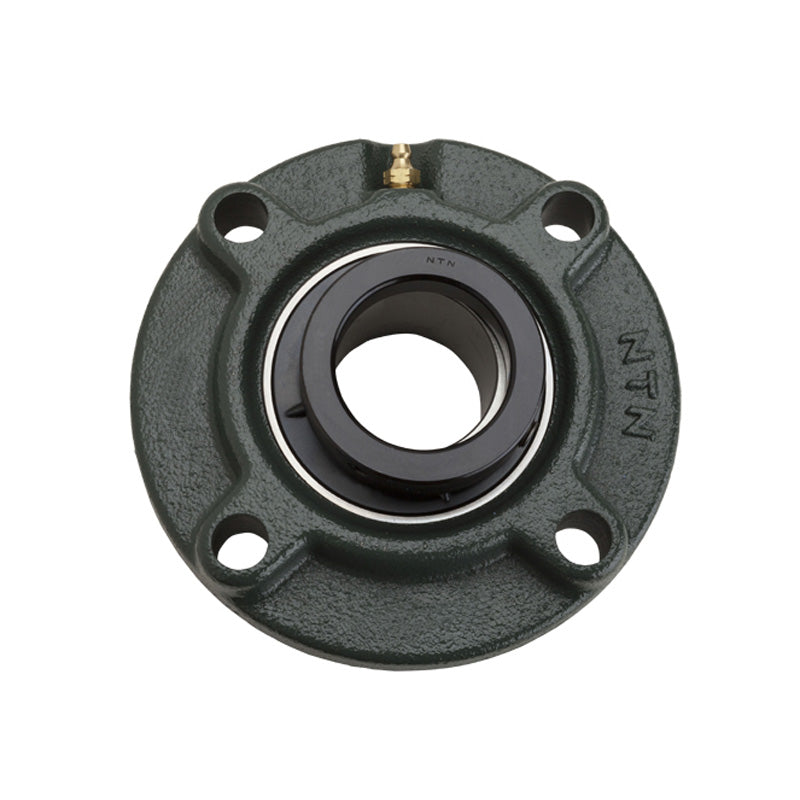

NTN M-UELFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 7,089.68
Regular price
Sale price
Rs. 7,089.68
Taxes included.
In stock
Price Break
5+
Rs. 7,018.78
10+
Rs. 6,735.20
20+
Rs. 6,593.40
50+
Rs. 6,380.71
100+
Rs. 6,238.92
500+
Rs. 5,884.43
1000+
Rs. 4,962.78
Description
Description
UELFC200 Series 4 Bolt Cast Iron Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UELFC
- Pitch Circle Diameter:
- 84.9mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| L | 145mm |
| J | 120mm |
| (J<sub>1</sub> | 84.9mm |
| A<sub>2</sub> | 11mm |
| N | 14mm |
| A<sub>3</sub> | 10mm |
| A<sub>1</sub> | 26mm |
| A | 36mm |
| H<sub>3</sub> | 100mm |
| A<sub>0</sub> | 55.9mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| F min. | 59mm |
| Fixing bolt | M12 |
| Mass | 2.1 kg |
