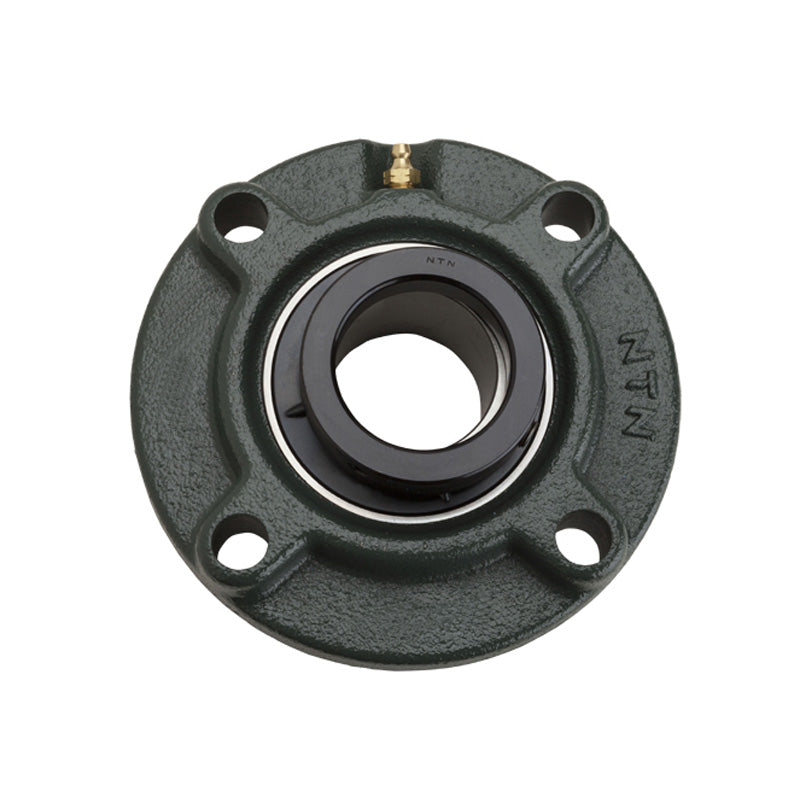

NTN M-UELFC206D1 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFC206D1 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 5,671.23
Regular price
Sale price
Rs. 5,671.23
Taxes included.
In stock
Price Break
5+
Rs. 5,614.52
10+
Rs. 5,387.67
20+
Rs. 5,274.24
50+
Rs. 5,104.11
100+
Rs. 4,990.68
500+
Rs. 4,707.12
1000+
Rs. 3,969.86
Description
Description
UELFC200 Series 4 Bolt Cast Iron Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UELFC
- Pitch Circle Diameter:
- 70.7mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| L | 125mm |
| J | 100mm |
| (J<sub>1</sub> | 70.7mm |
| A<sub>2</sub> | 10mm |
| N | 12mm |
| A<sub>3</sub> | 8mm |
| A<sub>1</sub> | 23mm |
| A | 31mm |
| H<sub>3</sub> | 80mm |
| A<sub>0</sub> | 48.15mm |
| B<sub>1</sub> | 48.4mm |
| S | 18.25mm |
| F min. | 47mm |
| Fixing bolt | M10 |
| Mass | 1.4 kg |
